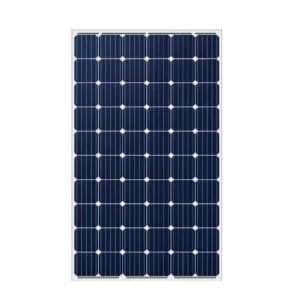

Mono-PERC Technology M3 72 Cell 390W – 405W Pow...

Name: Mono-PERC Technology M3 72 Cell 390W – 405W Pow...
Brand: Zergoun Green Energy

Technology: PERC ZERGOUN GREEN ENERGY is a branch Company of the ZERGOUN BROTHERS GROUP. ZGE aims is to develop in the renewable energy sector in Algeria, in particular through the production of PV modules through the launch of one of the largest highly automated production lines in Africa with a capacity of 200 MW per year. With the use of 100% of renowned European equipment and the latest technologies called glass-glass (double glass) and high efficiency "MonoPerc cells". The power of our modules varies from 300Wp to 410Wp per module with the best performance available on the market. The producible of this type of modules is the highest in terms of yield, but also the most adapted to our climate.

PERC405 W20.1% eff

0Upvotes

Overview

Key Specifications

Max Power

405 W

Efficiency

20.1%

Product Warranty

10 years

Dimensions

1991 × 1004 mm

Connectors

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameMono-PERC Technology M3 72 Cell 390W – 405W Pow...

ManufacturerZergoun Green Energy

CountryAlgeria

CategoryPERC

Cell TypeMonocrystalline

Number of Cells72

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions1991 × 1004 × 35 mm

Weight23 kg

Front GlassTempered

Back Glass

FrameAluminium

Junction BoxIP 67

Output Cables4 mm2

Connectors

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating20 A

Power Tolerance0 ~ +1 %

NMOT45 °C

Temp Coeff Pmax-0.390 %/°C

Temp Coeff Voc-0.300 %/°C

Temp Coeff Isc0.060 %/°C

Warranty

Product Warranty10 years

Power Warranty0 years (0% at year 0)

Certifications & Regions

Certifications—

RegionsGlobal

CountriesAlgeria

Commercial

Price—

Launch Year2026

AvailabilityAvailable
