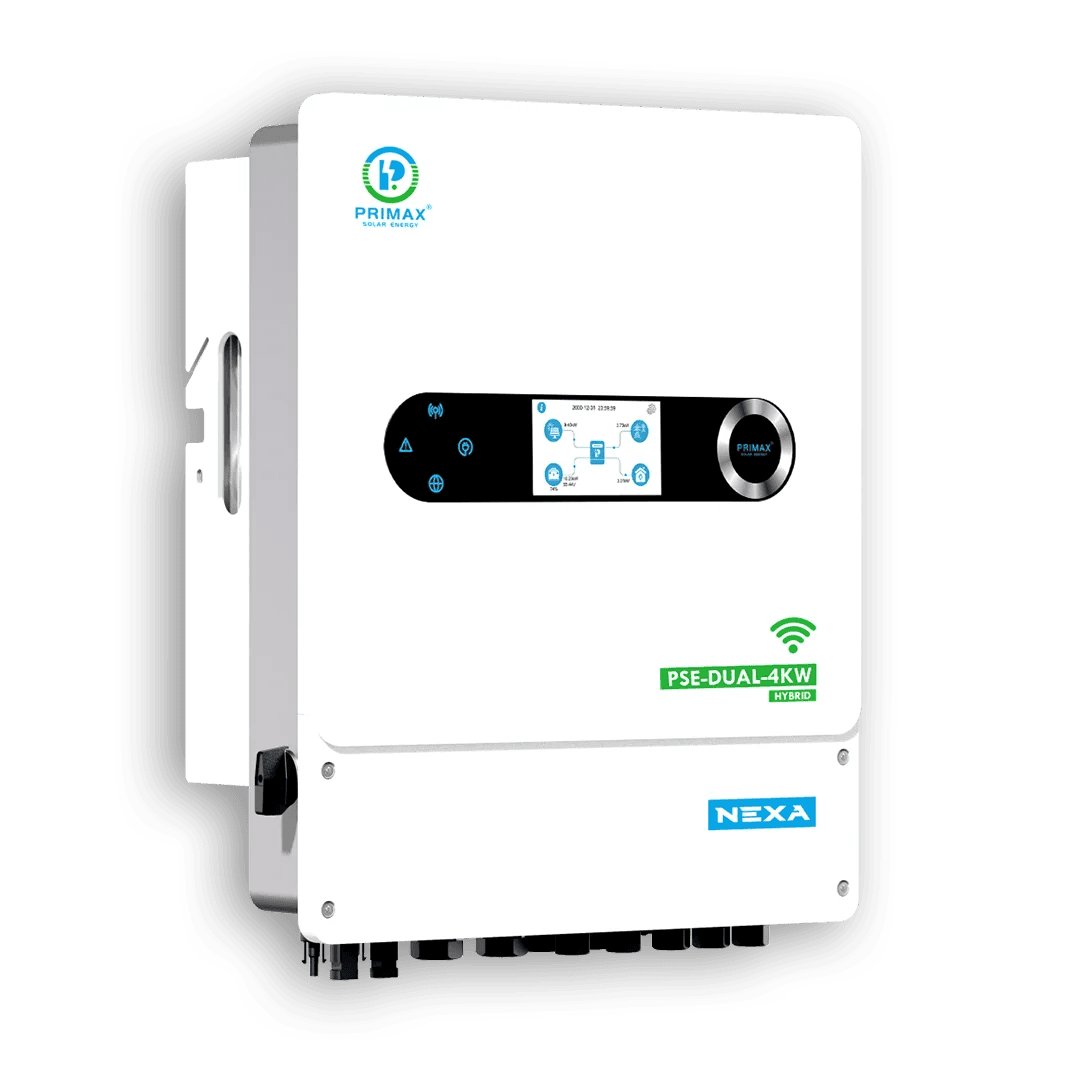

PSE-Dual-4kW

PSE-Dual-4kW

by Primax Solar Energy Pvt Ltd · Pakistan

Visit site

Nexa Series 4KW Type: Hybrid

Hybrid Inverter4.0 kW97.6% peakMonitoring10-Year WarrantyRS 485EthernetWLAN
0

Overview

Nexa Series 4KW Type: Hybrid

Key Specifications

Output Power

4.0 kW

Peak Efficiency

97.6%

Enclosure

IP65

Warranty

10 years

Max Input Voltage

500 V

MPPT Range

150 – 450 V

Max Output

4000 VA

Launch Year

2025

Full Specifications

Product Identity

NamePSE-Dual-4kW
Slugprimax-solar-energy-pvt-ltd-pse-dual-4kw
ManufacturerPrimax Solar Energy Pvt Ltd
CountryPakistan
CategoryHybrid Inverter
Sub-categoryHybrid

DC Input

Input Channels2
MPPT Voltage Range150 – 450 V
Max Input Voltage500 V
Max Input Current36 A

AC Output

Rated Output Power4.0 kW
Max Output Power4000 VA
Rated Voltage220 V
Frequency50, 60 Hz Hz
Max Output Current20 A
Power Factor1

Efficiency

Peak Efficiency97.6%
MPPT Efficiency97%

Protection & Environmental

Enclosure RatingIP65
Operating Temperature-25°C to 60°C

Physical

Weight19 kg
Dimensions555x424x197 mm

Communication

RS 485EthernetWLAN
Module-Level Monitoring

Commercial

Price
Warranty10 years
Launch Year2025
StatusAvailable

Regions & Certifications

GlobalPakistan

InverterRank

Score50
Profile Completeness100%
