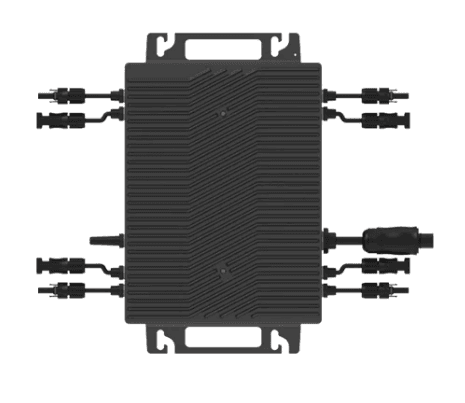

PM4T12EU
by PMESI (Shanghai) Co., Ltd. · China
PM4T12/16/20EU Type: Micro-inverter
Microinverter4 W95.6% peak
0Upvotes
Overview
PM4T12/16/20EU Type: Micro-inverter
Key Specifications
Output Power
4 W
Peak Efficiency
95.6%
Enclosure
IP67
Warranty
1 years
MPPT Range
16 – 60 V
Launch Year
2025
Full Specifications
Product Identity
NamePM4T12EU
Slugpmesi-shanghai-co-ltd-pm4t12eu
ManufacturerPMESI (Shanghai) Co., Ltd.
CountryChina
CategoryMicroinverter
Sub-categoryMicro-inverter
DC Input
MPPT Voltage Range16 – 60 V
AC Output
Rated Output Power4 W
Rated Voltage220 V
Frequency50, 60 Hz Hz
Max Output Current7.3 A
Efficiency
Peak Efficiency95.6%
MPPT Efficiency95.3%
Protection & Environmental
Enclosure RatingIP67
Physical
Weight3.75 kg
Dimensions176x280x33 mm
Commercial
Price—
Warranty1 years
Launch Year2025
StatusAvailable
Regions & Certifications
Asia-PacificChina
InverterRank
Score50
Profile Completeness78%
