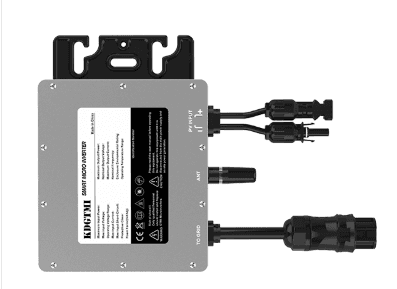

GTMI-400
by Dongguan Kaideng Energy Technology Co.,Ltd. · China
Type: Micro-inverter
Microinverter400 W92.7% peakMonitoringBluetoothWLAN
0Upvotes
Overview
Type: Micro-inverter
Key Specifications
Output Power
400 W
Peak Efficiency
92.7%
Enclosure
IP67
Warranty
1 years
MPPT Range
30 – 54 V
Max Output
400 VA
Launch Year
2025
Full Specifications
Product Identity
NameGTMI-400
Slugdongguan-kaideng-energy-technology-co-ltd-gtmi-400
ManufacturerDongguan Kaideng Energy Technology Co.,Ltd.
CountryChina
CategoryMicroinverter
Sub-categoryMicro-inverter
DC Input
MPPT Voltage Range30 – 54 V
Max Input Current18 A
AC Output
Rated Output Power400 W
Max Output Power400 VA
Frequency50, 60 Hz Hz
Efficiency
Peak Efficiency92.7%
Protection & Environmental
Enclosure RatingIP67
Operating Temperature-20°C to 50°C
Physical
Weight2.02 kg
Dimensions38x150x210 mm
Communication
BluetoothWLAN
Module-Level Monitoring
Commercial
Price—
Warranty1 years
Launch Year2025
StatusAvailable
Regions & Certifications
Asia-PacificChina
InverterRank
Score50
Profile Completeness100%
