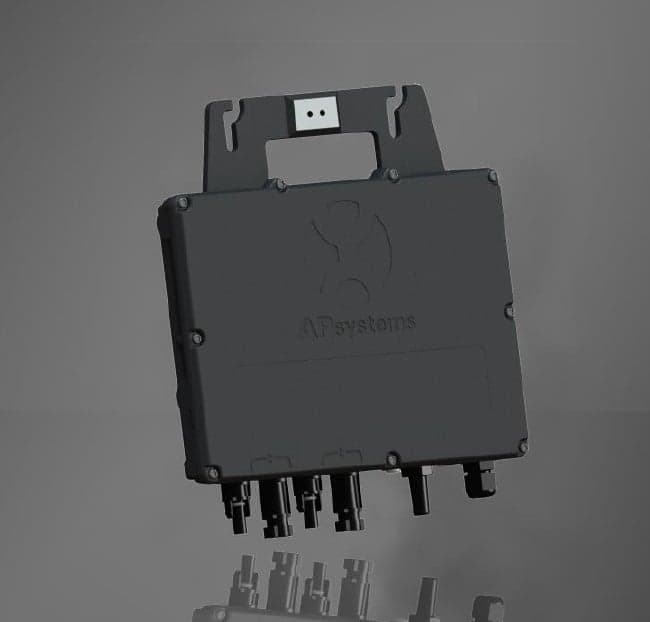

YC600 208V
by Altenergy Power System Inc. (APsystems) · China
Visit siteYC600 Type: Micro-inverter Transformer: High Frequency-Transformer Transformer: High Frequency-Transformer
Microinverter600 W96.7% peak10-Year Warranty
0Upvotes
Overview
YC600 Type: Micro-inverter Transformer: High Frequency-Transformer Transformer: High Frequency-Transformer
Key Specifications
Output Power
600 W
Peak Efficiency
96.7%
Enclosure
IP67, NEMA 6
Warranty
10 years
Max Input Voltage
60 V
MPPT Range
22 – 45 V
Max Output
600 VA
Launch Year
2025
Full Specifications
Product Identity
NameYC600 208V
Slugaltenergy-power-system-inc-apsystems-yc600-208v
ManufacturerAltenergy Power System Inc. (APsystems)
CountryChina
CategoryMicroinverter
Sub-categoryMicro-inverter
DC Input
MPPT Voltage Range22 – 45 V
Max Input Voltage60 V
Max Input Current24 A
AC Output
Rated Output Power600 W
Max Output Power600 VA
Rated Voltage208 V
Voltage Range160 – 278 V
Frequency59.3-60.5 Hz Hz
Power Factor0.8
Efficiency
Peak Efficiency96.7%
Night Power Consumption60 mW
Protection & Environmental
Enclosure RatingIP67, NEMA 6
Operating Temperature-40°C to 65°C
Physical
Weight2.6 kg
Dimensions188x260x31.5 mm
Commercial
Price—
Warranty10 years
Launch Year2025
StatusAvailable
Regions & Certifications
Asia-PacificChina
InverterRank
Score50
Profile Completeness89%
