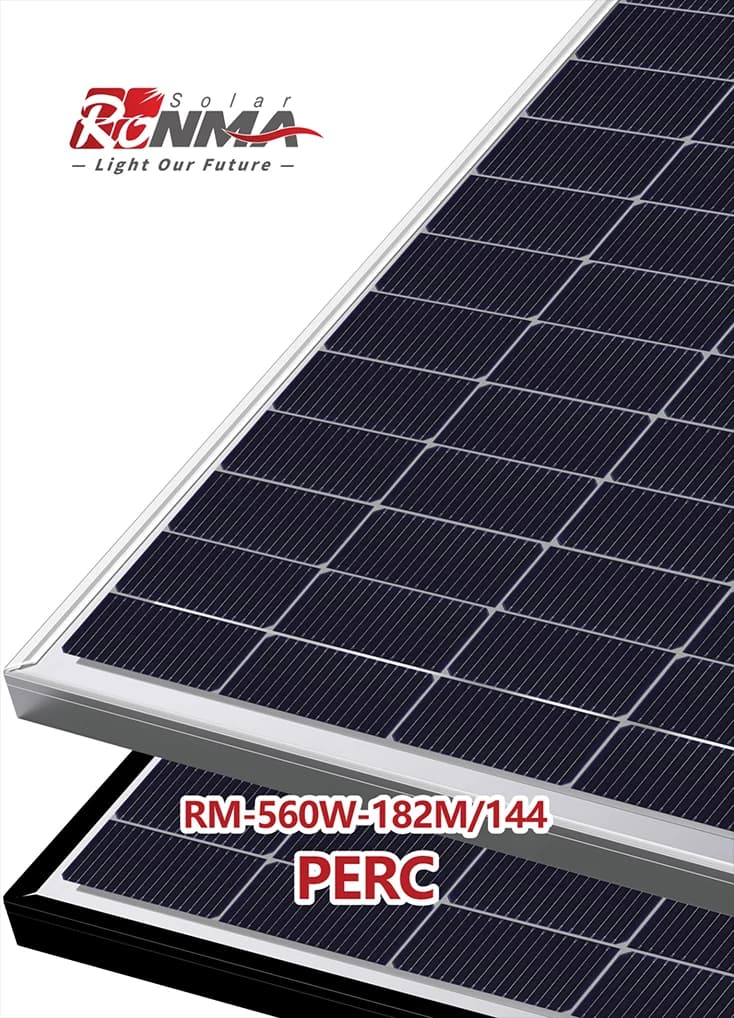

RM-560W-182M/144 PERC Module

Name: RM-560W-182M/144 PERC Module
Brand: Zhejiang Ronma Solar Group Co,.Ltd.

by Zhejiang Ronma Solar Group Co,.Ltd. · China

Technology: PERC RonmaSolar, one of the earliest manufacturers of solar panels in China, is mainly engaged in crystalline silicon solar cells, modules, pv system engineering, pv application products R&D, manufacturing, sales, technical support, EPC and after-sales service, etc. We can offer Mono/Poly-crystalline Silicon PERC and N-Type TOPCON Solar Cells with efficiency up to 25%+. Also, we can customize 380-700W photovoltaic modules, including full/half-cutting cell modules, single/dual-glass modules, full black modules and other kinds of photovoltaic modules. Besides, we can provide customized solutions for global customers.

PERC560 W21.66% eff

0Upvotes

Overview

Key Specifications

Max Power

560 W

Efficiency

21.66%

Product Warranty

15 years

Dimensions

2279 × 1134 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameRM-560W-182M/144 PERC Module

ManufacturerZhejiang Ronma Solar Group Co,.Ltd.

CountryChina

CategoryPERC

Cell TypeMonocrystalline

Number of Cells144

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions2279 × 1134 × 30 mm

Weight27.5 kg

Front GlassTempered

Back GlassPET

FrameAluminium

Junction BoxIP 68

Output Cables4 mm2

ConnectorsMC4

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating25 A

Power Tolerance-5 ~ +5 %

NMOT

Temp Coeff Pmax-0.36 %/°C

Temp Coeff Voc-0.27 %/°C

Temp Coeff Isc0.04 %/°C

Warranty

Product Warranty15 years

Power Warranty25 years (84.8% at year 25)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2026

AvailabilityAvailable
