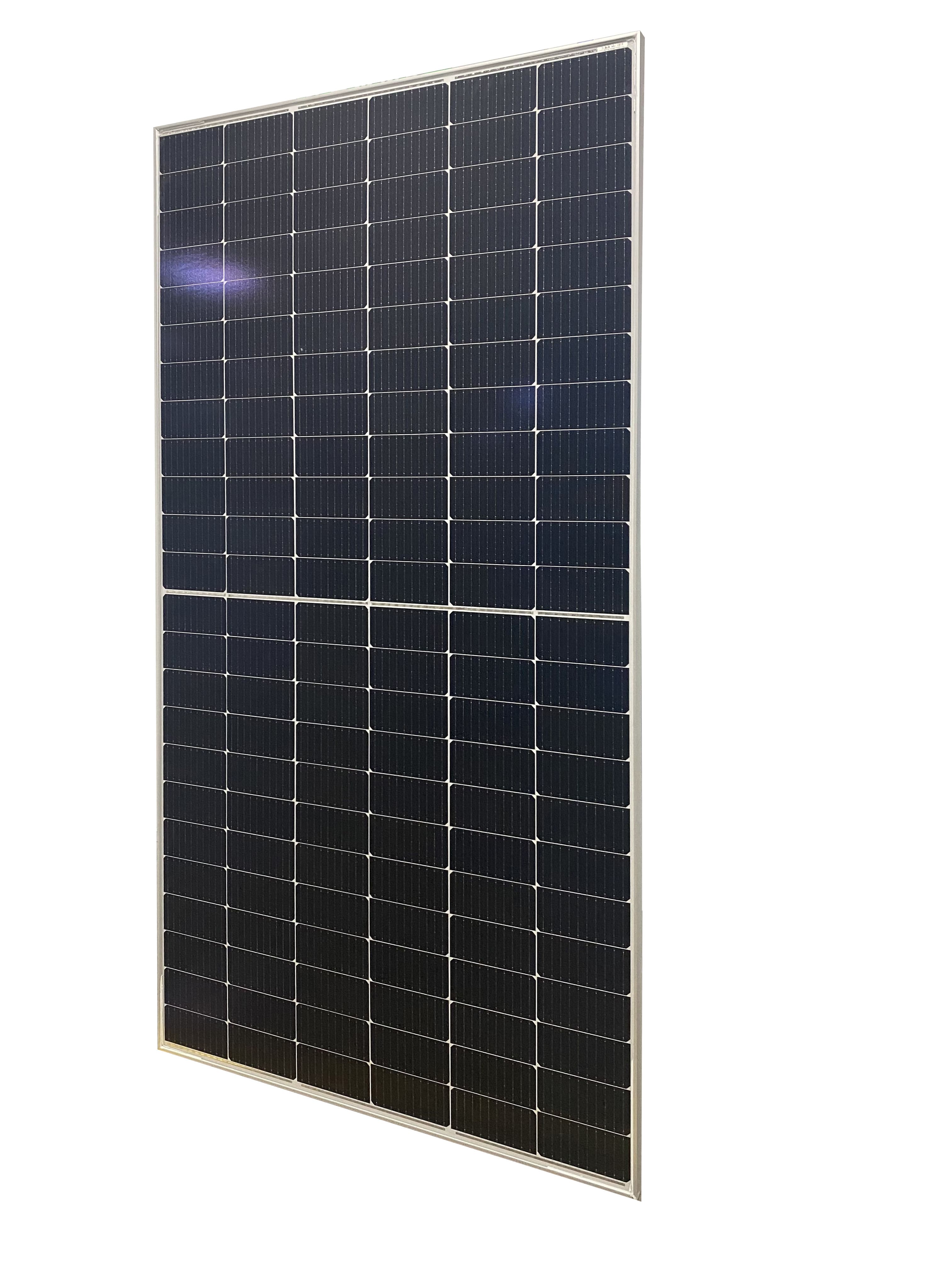

GPM540-560W(144)

Name: GPM540-560W(144)
Brand: Zhejiang G&P Sun Energy Technology Co.,Ltd

by Zhejiang G&P Sun Energy Technology Co.,Ltd · China

Technology: Bifacial, PERC GPSolar, specializes in the manufacturing of photovoltaic modules and the provision of integrated photovoltaic energy solutions.Founded in 2003, GPSolar is headquartered in Hangzhou, Zhejiang Province, and currently has 3 production bases in China with a total capacity of 10GW.GPSolar products have been sold to more than 80 countries and regions around the world, with overseas sales and service teams in South America, Europe, Southeast Asia and other regions.

PERC560 W21.68% effBifacial

0Upvotes

Overview

Key Specifications

Max Power

560 W

Efficiency

21.68%

Product Warranty

12 years

Dimensions

2278 × 1134 mm

Connectors

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameGPM540-560W(144)

ManufacturerZhejiang G&P Sun Energy Technology Co.,Ltd

CountryChina

CategoryPERC

Cell TypeMonocrystalline

Number of Cells144

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions2278 × 1134 × 30 mm

Weight28 kg

Front GlassAnti-reflection Coating, Tempered

Back Glass

FrameAnodized Aluminium

Junction BoxIP 68

Output Cables4 mm2

Connectors

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating25 A

Power Tolerance0 ~ +3 %

NMOT45±2 °C

Temp Coeff Pmax-0.35 %/°C

Temp Coeff Voc-0.28 %/°C

Temp Coeff Isc0.048 %/°C

Warranty

Product Warranty12 years

Power Warranty30 years (84.95% at year 30)

Bifacial Output (Rear-side Power Gain)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2026

AvailabilityAvailable
