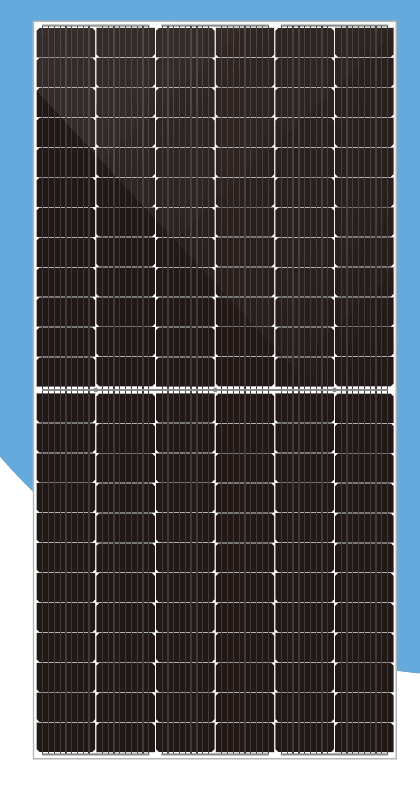

ZECO-72L9 430~465W

Name: ZECO-72L9 430~465W
Brand: Zeconex, Ltd.

Technology: PERC Zeconex is the leading manufacturer of battery energy storage systems with solar inverters integrated with the global market, headquartered in Shenzhen, China. Our product portfolio consists of Battery Energy Storage Systems, Portable Power Stations, Home Energy Storage Systems, and Inverters, all independently developed by ourselves. We exported to more than 30 countries and regions since 2014. Our top R&D team both in China and abroad, with rich experience in international protocol, supports us to offer OEM/ODM service for our clients all over the world. Welcome to our partners.

PERC465 W21.39% eff

0Upvotes

Overview

Key Specifications

Max Power

465 W

Efficiency

21.39%

Product Warranty

12 years

Dimensions

2094 × 1038 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameZECO-72L9 430~465W

ManufacturerZeconex, Ltd.

CountryChina

CategoryPERC

Cell TypeMonocrystalline

Number of Cells144

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions2094 × 1038 × 30 mm

Weight23.5 kg

Front GlassAnti-reflection Coating

Back Glass

Frame

Junction BoxIP 68

Output Cables4 mm2

ConnectorsMC4

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating20 A

Power Tolerance0 ~ +1.12 %

NMOT45±2 °C

Temp Coeff Pmax-0.35 %/°C

Temp Coeff Voc-0.31 %/°C

Temp Coeff Isc0.05 %/°C

Warranty

Product Warranty12 years

Power Warranty25 years (84.8% at year 25)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2026

AvailabilityAvailable
