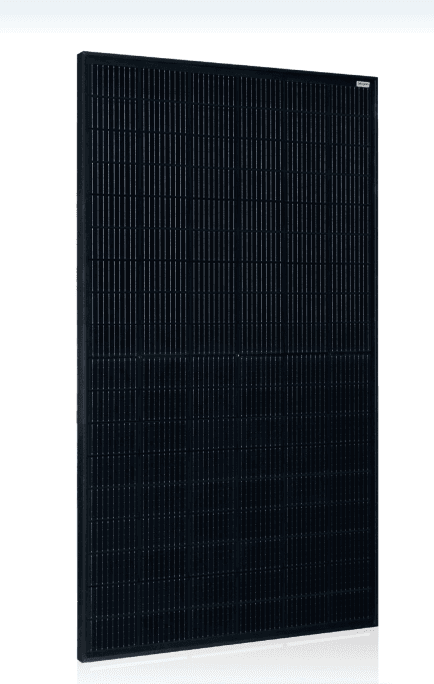

JHM5/54H 395-415 Black Shark

Name: JHM5/54H 395-415 Black Shark
Brand: Yangzhou Jinghua New Energy Technology Co., Ltd.

by Yangzhou Jinghua New Energy Technology Co., Ltd. · China

Technology: PERC Yangzhou Jinghua New Energy was established in July 2019. The total investment is 3.5 billion yuan, and the planned PV module capacity is 10 GW. The first phase of 2GW has completed and put into operation in 2021. As a high-tech company, Jinghua is devoted to building an efficient solar PV module manufacturing enterprise integrating R&D, production, sales, and service. Jinghua has the most cutting-edge product planning and expansion capability, multi-mode business, and diversified products.

PERC415 W21.25% eff

0Upvotes

Overview

Key Specifications

Max Power

415 W

Efficiency

21.25%

Product Warranty

12 years

Dimensions

1722 × 1134 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameJHM5/54H 395-415 Black Shark

ManufacturerYangzhou Jinghua New Energy Technology Co., Ltd.

CountryChina

CategoryPERC

Cell TypeMonocrystalline

Number of Cells108

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions1722 × 1134 × 35 mm

Weight20.5 kg

Front GlassTempered

Back Glass

FrameAnodized Aluminium, Black

Junction BoxIP 68

Output Cables4 mm2

ConnectorsMC4

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating25 A

Power Tolerance0 ~ +1.23 %

NMOT44±2 °C

Temp Coeff Pmax-0.35 %/°C

Temp Coeff Voc-0.26 %/°C

Temp Coeff Isc0.036 %/°C

Warranty

Product Warranty12 years

Power Warranty25 years (84.8% at year 25)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2026

AvailabilityAvailable
