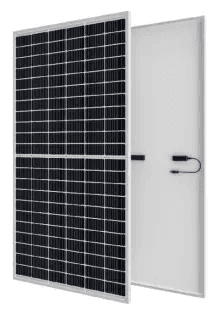

LB4M385-420H54(H)

Name: LB4M385-420H54(H)
Brand: Xiamen Lianbang Technology Co., Ltd.

by Xiamen Lianbang Technology Co., Ltd. · China

Technology: PERC Xiamen Lianbang Technology Co., Ltd. is located in Haicang District, Xiamen, known as the "Island of Lu." As a national high-tech enterprise, Lianbang integrates the design, manufacture, installation, sales, service, and application of photovoltaic support systems. The company, with its own brands such as "Lianbang" and "Target Solar," is dedicated to providing core support structure solutions for photovoltaic power generation systems worldwide. Phone: +8619996811198 WhatsApp: +8619996811198 Email:[email protected] Address: 6th Floor, Building 3, Dada Industrial Park, No. 65 Haijing South Road, Haicang District, Xiamen, Fujian Province, China

PERC410 W21% eff

0Upvotes

Overview

Key Specifications

Max Power

410 W

Efficiency

21%

Product Warranty

12 years

Dimensions

1722 × 1134 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameLB4M385-420H54(H)

ManufacturerXiamen Lianbang Technology Co., Ltd.

CountryChina

CategoryPERC

Cell TypeMonocrystalline

Number of Cells108

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions1722 × 1134 × 35 mm

Weight20.8 kg

Front GlassAnti-reflection Coating, Tempered

Back Glass

FrameAnodized Aluminium

Junction BoxIP 68

Output Cables4 mm2

ConnectorsMC4

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating25 A

Power Tolerance0 ~ +1 %

NMOT43±2 °C

Temp Coeff Pmax-0.38 %/°C

Temp Coeff Voc-0.35 %/°C

Temp Coeff Isc0.06 %/°C

Warranty

Product Warranty12 years

Power Warranty25 years (84.8% at year 25)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2026

AvailabilityAvailable
