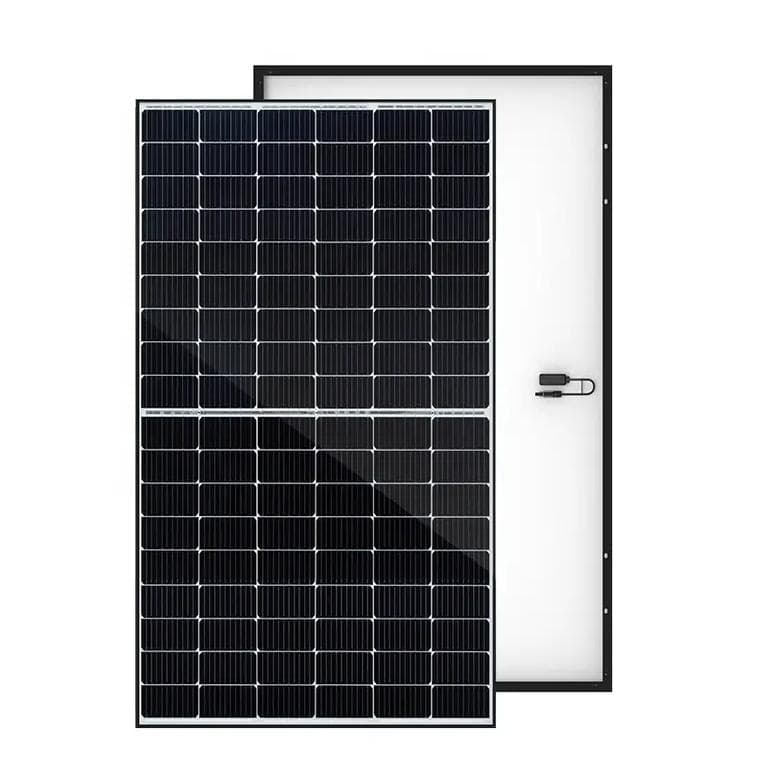

GSPV-M12/108H-475W-505W
by Wuxi GSPV New Energy Co., Ltd. · China
Visit siteTechnology: PERC
PERC505 W22.7% eff
0Upvotes
Overview
Technology: PERC
Key Specifications
Max Power
505 W
Efficiency
22.7%
Product Warranty
15 years
Dimensions
1961 × 1134 mm
Connectors
MC4
Max System Voltage
1500 V
Launch Year
2026
Price
—
Full Specifications
Product Identity
NameGSPV-M12/108H-475W-505W
ManufacturerWuxi GSPV New Energy Co., Ltd.
CountryChina
CategoryPERC
Cell TypeMonocrystalline
Number of Cells108
Electrical Parameters (STC)
| Model | Pmax (W) | Vmpp (V) | Impp (A) | Voc (V) | Isc (A) | Eff (%) |
|---|
Mechanical Characteristics
Dimensions1961 × 1134 × 30 mm
Weight23.5 kg
Front GlassAnti-reflection Coating
Back Glass
FrameAnodized Aluminium, Black
Junction BoxIP 68
Output Cables4 mm2
ConnectorsMC4
Mechanical Load0 Pa
Operating & Temperature
Operating Temperature-40°C to 85°C
Max System Voltage1500 V DC
Max Series Fuse Rating30 A
Power Tolerance0 ~ +1 %
NMOT43±2 °C
Temp Coeff Pmax-0.29 %/°C
Temp Coeff Voc-0.24 %/°C
Temp Coeff Isc0.04 %/°C
Warranty
Product Warranty15 years
Power Warranty30 years (87.4% at year 30)
Certifications & Regions
Certifications—
RegionsAsia-Pacific
CountriesChina
Commercial
Price—
Launch Year2026
AvailabilityAvailable
