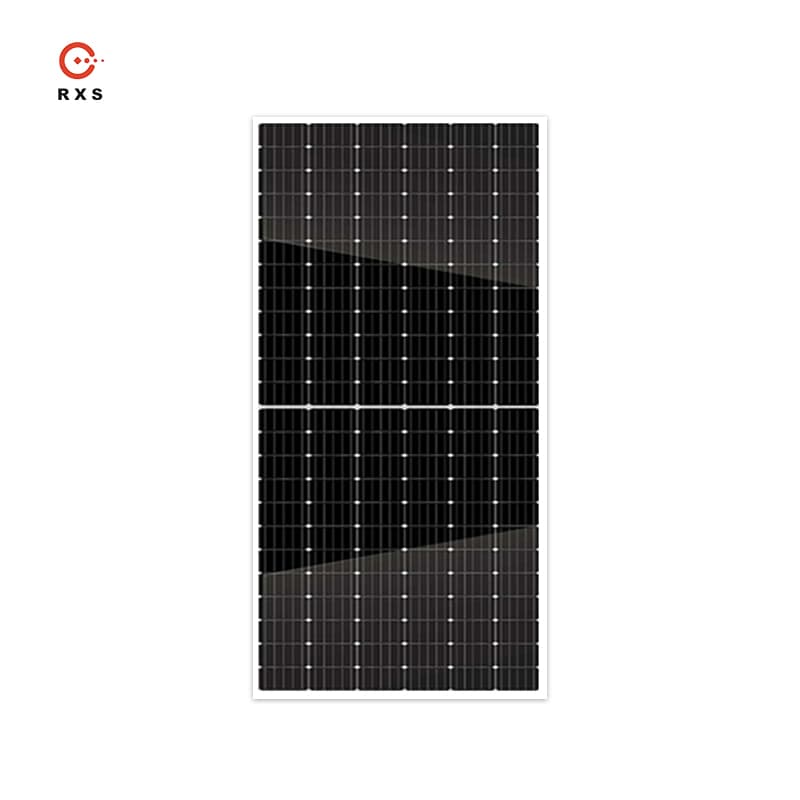

DDG(P)535(K)

Name: DDG(P)535(K)
Brand: Wuhan Rixin Technology Co., Ltd.

by Wuhan Rixin Technology Co., Ltd. · China

DDG(P)535-550(K) Technology: Monocrystalline Found in 2001, Wuhan Rixin Technology Co.,Ltd is the biggest PV products manufacture in Wuhan, Hubei Province. Rixin solar dedicates in marketing and expanding with qualified monocrystalline panels, polycrystalline panels, BIPV, solar light, solar system; In addition, Rixin can provide technical service for solar system design and installation; customized product is also available here. Rixin panels accord with CE standard strictly, and all the panels have gotten approved by TUV, CQC, ISO,3C. Own two manufacturing base which area is more than 180000㎡, with PV module annual production capability of 500MW.

Other535 W20.64% eff

0Upvotes

Overview

Key Specifications

Max Power

535 W

Efficiency

20.64%

Product Warranty

1 years

Dimensions

2285 × 1134 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2025

Price

—

Full Specifications

Product Identity

NameDDG(P)535(K)

ManufacturerWuhan Rixin Technology Co., Ltd.

CountryChina

CategoryOther

Cell TypeMonocrystalline

Number of Cells144

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)
DDG(P)535(K)	535	41.87	12.78	49.78	13.53	20.64%

Mechanical Characteristics

Dimensions2285 × 1134 × 35 mm

Weight32.1 kg

Front GlassTempered

Back GlassTempered

FrameAnodized Aluminium

Junction BoxIP 68

Output Cables300 mm / 4 mm2

ConnectorsMC4

Mechanical Load5400 Pa

Operating & Temperature

Operating Temperature-40°C to -40°C

Max System Voltage1500 V DC

Max Series Fuse Rating20 A

Power Tolerance0 ~ +0.93 %

NMOT45±2 °C

Temp Coeff Pmax-0.39 %/°C

Temp Coeff Voc-0.3 %/°C

Temp Coeff Isc0.06 %/°C

Warranty

Product Warranty1 years

Power Warranty30 years (84.95% at year 30)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2025

AvailabilityAvailable
