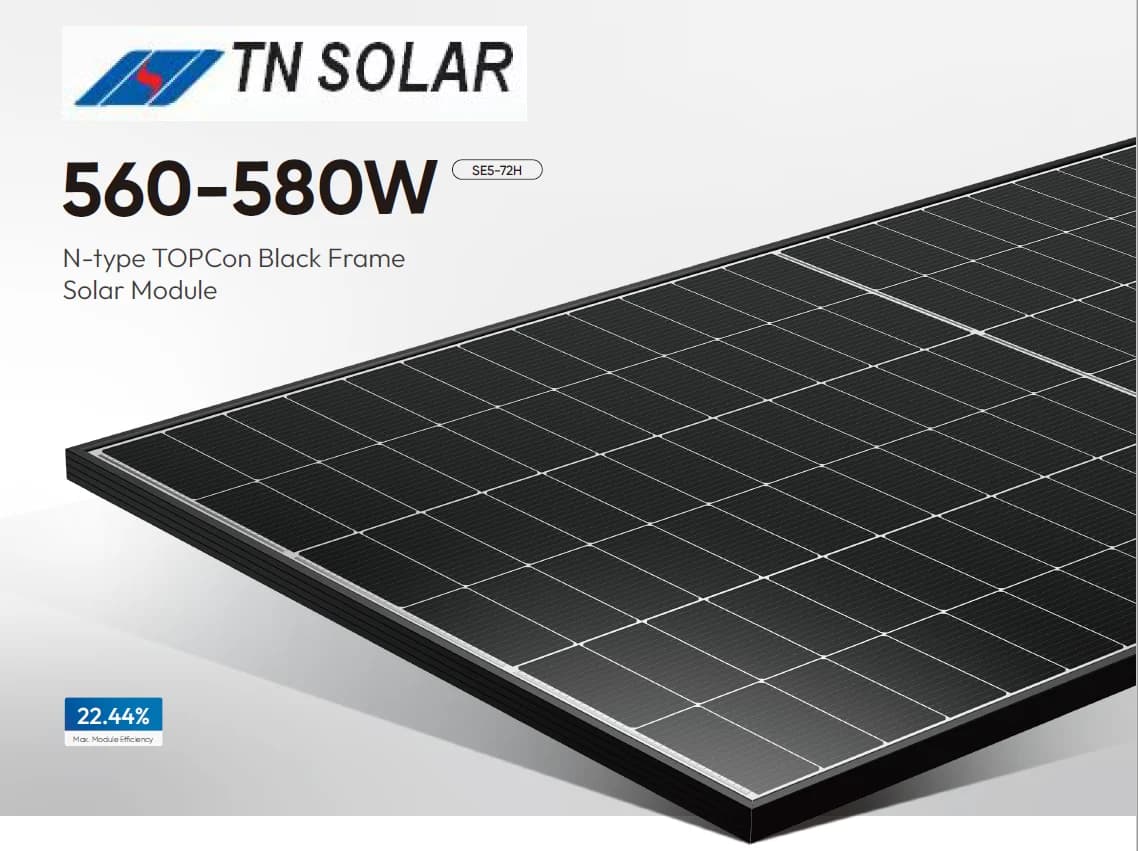

TN5-72H 550-580W

Name: TN5-72H 550-580W
Brand: TN Solar Co., Limited

10-30% Additional Power Generation Technology: Bifacial, TOPCon, N-type Subject: 730W Tier 1 Solar Panels | Ex-Stock Koper Warehouse (10 Containers / 6660 Pcs) Dear Partner, We have 730W Tier 1 solar panels available in ready stock at Koper Warehouse, Slovenia. Total quantity: 6,660 pieces (10 full containers) Grade: Tier 1, fully certified for EU market Location: Ex-stock Koper, fast delivery across EU Welcome EU distributors, EPC companies and solar installers to contact us for details and quotation. +8618698702383

N-type TOPCon605 W22.44% effBifacial30-Year Product Warranty

0Upvotes

Overview

Key Specifications

Max Power

605 W

Efficiency

22.44%

Product Warranty

30 years

Dimensions

2279 × 1134 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameTN5-72H 550-580W

ManufacturerTN Solar Co., Limited

CountryChina

CategoryN-type TOPCon

Cell TypeMonocrystalline

Number of Cells144

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions2279 × 1134 × 35 mm

Weight27.5 kg

Front GlassTempered

Back Glass

FrameAnodized Aluminium, Black

Junction BoxIP 68

Output Cables4 mm2

ConnectorsMC4

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating25 A

Power Tolerance0 ~ +0.85 %

NMOT45±2 °C

Temp Coeff Pmax-0.3 %/°C

Temp Coeff Voc-0.25 %/°C

Temp Coeff Isc0.046 %/°C

Warranty

Product Warranty30 years

Power Warranty30 years (87.4% at year 30)

Bifacial Output (Rear-side Power Gain)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2026

AvailabilityAvailable
