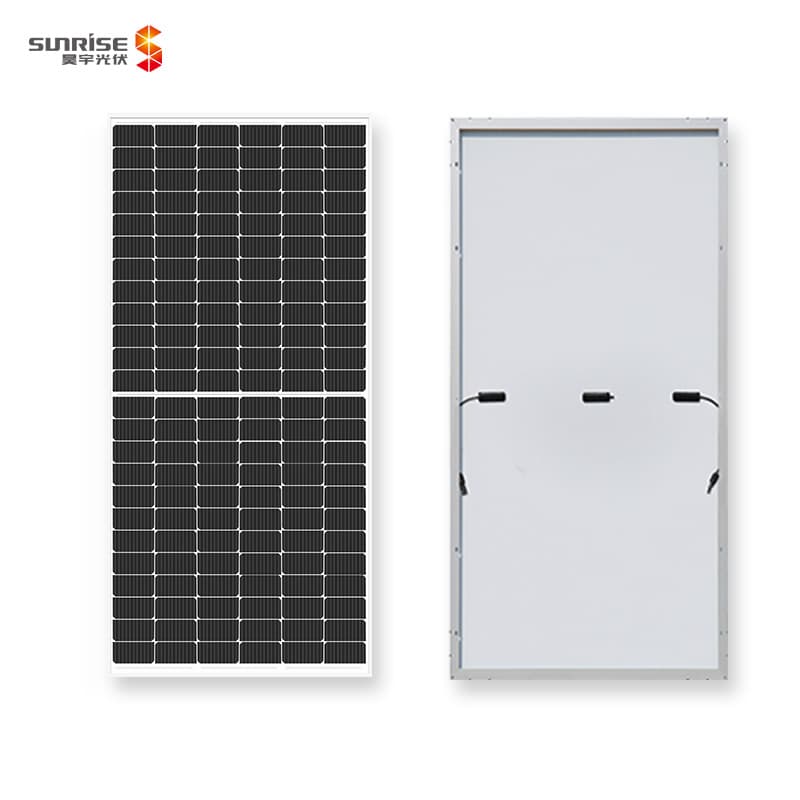

Aquaman SR-72M545-565HLPro

Name: Aquaman SR-72M545-565HLPro
Brand: Sunrise Energy Co., Ltd.

Technology: PERC Focus on module manufacturing and system integration service for 18 years SUNRISE brand has been founed since 2006，located in Changzhou, Jiangsu.with 35000m² owned automatic workshop. MAIN BUSINESS: ① solar modules manufacturing and sales ② inverters manufacturing and sales ③ system integration and sales ④ energy storage and application Certification:TUV, CE, CQC, ISO, CSI, BIS, MCS, INMETRO, etc. Enterprise honors:“AAA rating of the highest credit rating of Chinese enterprises", "High-tech enterprise", "Excellent brand of Jiangsu Province", "Top ten influential enterprises" and "Top ten innovative module enterprises".

PERC565 W21.9% eff

0Upvotes

Overview

Key Specifications

Max Power

565 W

Efficiency

21.9%

Product Warranty

12 years

Dimensions

2278 × 1133 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameAquaman SR-72M545-565HLPro

ManufacturerSunrise Energy Co., Ltd.

CountryChina

CategoryPERC

Cell TypeMonocrystalline

Number of Cells144

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions2278 × 1133 × 30 mm

Weight26.5 kg

Front GlassAnti-reflection Coating

Back Glass

FrameAnodized Aluminium

Junction BoxIP 68

Output Cables4 mm2

ConnectorsMC4

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating25 A

Power Tolerance0 ~ +0.9 %

NMOT45±2 °C

Temp Coeff Pmax-0.348 %/°C

Temp Coeff Voc-0.282 %/°C

Temp Coeff Isc0.05 %/°C

Warranty

Product Warranty12 years

Power Warranty25 years (84.8% at year 25)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2026

AvailabilityAvailable
