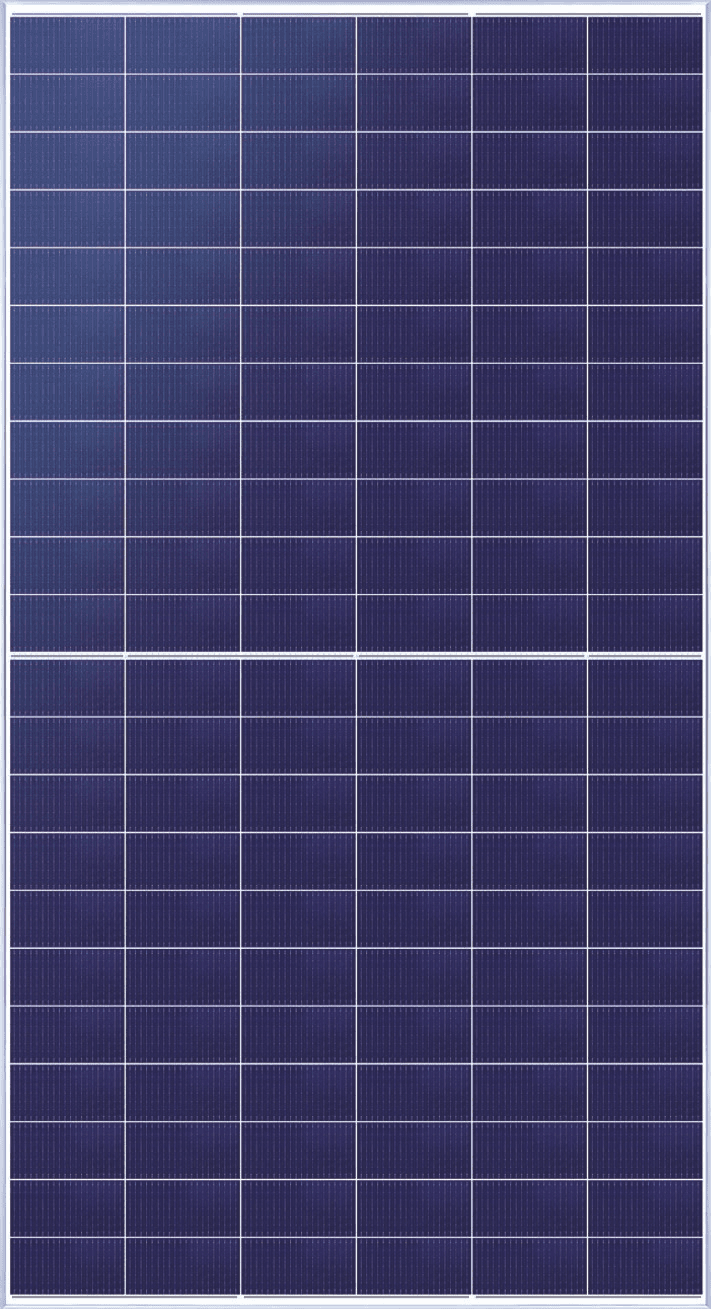

SL6N132D
by SunLink PV · China
SL6N132D. Monocrystalline solar panel. with 132 cells. power range 534-534W. up to 22.5% module efficiency. dimensions 2384x1303x33 mm. weight 38.3kg. 15-year product warranty.
Overview
SL6N132D. Monocrystalline solar panel. with 132 cells. power range 534-534W. up to 22.5% module efficiency. dimensions 2384x1303x33 mm. weight 38.3kg. 15-year product warranty.
Key Specifications
534 W
22.5%
15 years
2384 × 1303 mm
MC4
1500 V
2024
—
Full Specifications
Product Identity
Electrical Parameters (STC)
| Model | Pmax (W) | Vmpp (V) | Impp (A) | Voc (V) | Isc (A) | Eff (%) |
|---|---|---|---|---|---|---|
| SL6N132D | 534 | 40.3 | 13.26 | 47.95 | 14.02 | 22.5% |
| SL6N132D | 534 | 40.3 | 13.26 | 47.95 | 14.02 | 22.5% |
Mechanical Characteristics
Operating & Temperature
Warranty
Certifications & Regions
Commercial
