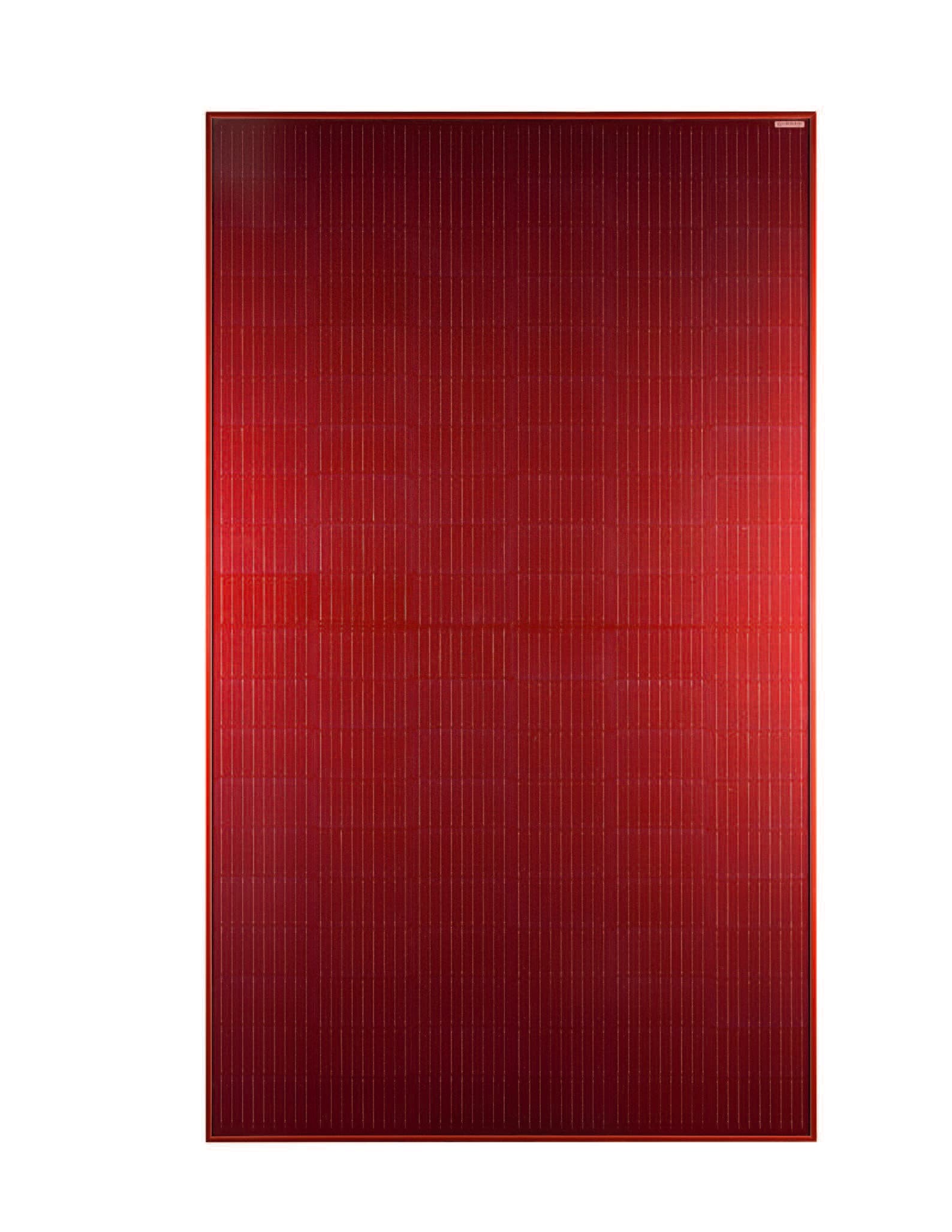

SNG Colored HC Mono 400W Total Red

Name: SNG Colored HC Mono 400W Total Red
Brand: Sungi Solar China Factory Co., Ltd.

by Sungi Solar China Factory Co., Ltd. · China

Technology: PERC Sungi Solar is a leading solar energy company. Our company specializes in the manufacture of PV modules, solar panels, and other related accessories. Our products are top-of-the-line in terms of quality and performance. Currently, we can provide three services for you: Manufacture any watt solar panels starting from 400~730W, with high efficiency and 35-year guaranteed life. Provide all necessary accessories for solar panels. Offer professional technical support. We strive to provide our customers with high-quality, reliable, and affordable solar products.

PERC400 W21.95% eff30-Year Product Warranty

0Upvotes

Overview

Key Specifications

Max Power

400 W

Efficiency

21.95%

Product Warranty

30 years

Dimensions

1755 × 1038 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameSNG Colored HC Mono 400W Total Red

ManufacturerSungi Solar China Factory Co., Ltd.

CountryChina

CategoryPERC

Cell TypeMonocrystalline

Number of Cells120

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions1755 × 1038 × 30 mm

Weight19.5 kg

Front GlassAnti-reflection Coating

Back Glass

FrameAnodized Aluminium

Junction BoxIP 68

Output Cables4 mm2

ConnectorsMC4

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating20 A

Power Tolerance-3 ~ +3 %

NMOT45±2 °C

Temp Coeff Pmax-0.35 %/°C

Temp Coeff Voc-0.28 %/°C

Temp Coeff Isc0.048 %/°C

Warranty

Product Warranty30 years

Power Warranty30 years (86.4% at year 30)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2026

AvailabilityAvailable
