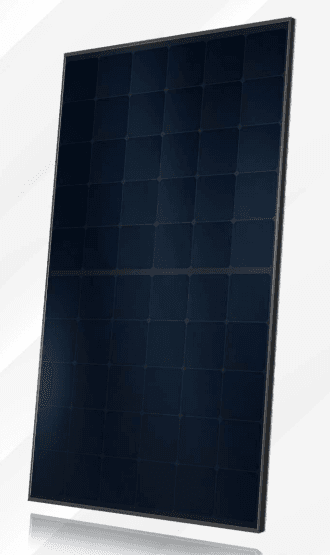

SPICN6(LAR)-60-405/IH

Name: SPICN6(LAR)-60-405/IH
Brand: SPIC Huanghe Hydropower Development Co., Ltd. Xining Solar Power Branch

by SPIC Huanghe Hydropower Development Co., Ltd. Xining Solar Power Branch · China

Elegant Black SPICN6(LDF)-60/BIH 400-410W Technology: Monocrystalline

Other308 W22.5% eff25-Year Product Warranty

0Upvotes

Overview

Elegant Black SPICN6(LDF)-60/BIH 400-410W Technology: Monocrystalline

Key Specifications

Max Power

308 W

Efficiency

22.5%

Product Warranty

25 years

Dimensions

1727 × 1039 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2025

Price

—

Full Specifications

Product Identity

NameSPICN6(LAR)-60-405/IH

ManufacturerSPIC Huanghe Hydropower Development Co., Ltd. Xining Solar Power Branch

CountryChina

CategoryOther

Cell TypeMonocrystalline

Number of Cells120

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)
SPICN6(LAR)-60-405/IH	308	34.9	8.84	40.8	9.57	22.5%

Mechanical Characteristics

Dimensions1727 × 1039 × 30 mm

Weight22.3 kg

Front GlassTempered

Back GlassTempered

FrameAnodized Aluminium, Black

Junction BoxIP 68

Output Cables1200 mm / 4 mm2

ConnectorsMC4

Mechanical Load5400 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating20 A

Power Tolerance0 ~ +1 %

NMOT45 °C

Temp Coeff Pmax-0.29 %/°C

Temp Coeff Voc-0.246 %/°C

Temp Coeff Isc0.046 %/°C

Warranty

Product Warranty25 years

Power Warranty30 years (91.8% at year 30)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2025

AvailabilityAvailable
