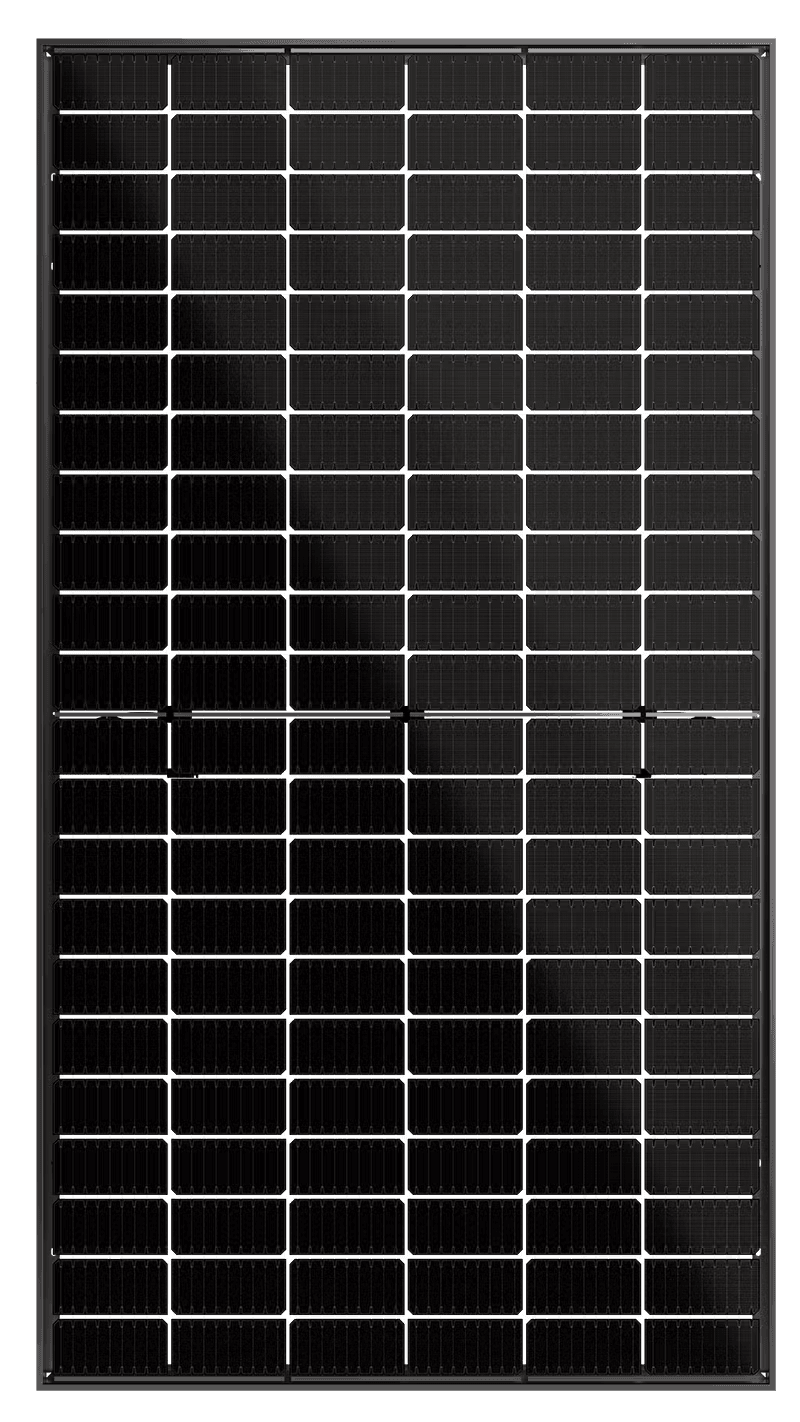

Matrix Series 600

Name: Matrix Series 600
Brand: SoLink S.r.l.

Technology: Bifacial, PERC SoLink, Innovative Photovoltaic Technology Made in Italy. It was 2003 when our founder began to be passionate about solar energy. Today, we boast two decades of experience in the field of innovative photovoltaics. Through our research and development team, we design and produce new high-performance solutions with Made in Italy quality. Our products are designed to use solar energy with maximum efficiency and zero emissions. There will never be a SoLink product that emits CO2 or combustion residues. More on: www.solink.it

PERC650 W20.9% effBifacial

0Upvotes

Overview

Key Specifications

Max Power

650 W

Efficiency

20.9%

Product Warranty

15 years

Dimensions

2384 × 1303 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameMatrix Series 600

ManufacturerSoLink S.r.l.

CountryItaly

CategoryPERC

Cell TypeMonocrystalline

Number of Cells132

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions2384 × 1303 × 35 mm

Weight38.7 kg

Front GlassAnti-reflection Coating, Tempered

Back Glass

FrameAnodized Aluminium

Junction BoxIP 68

Output Cables4 mm2

ConnectorsMC4

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating20 A

Power Tolerance0 ~ +1 %

NMOT43±2 °C

Temp Coeff Pmax-0.34 %/°C

Temp Coeff Voc-0.25 %/°C

Temp Coeff Isc0.04 %/°C

Warranty

Product Warranty15 years

Power Warranty30 years (85% at year 30)

Bifacial Output (Rear-side Power Gain)

Certifications & Regions

Certifications—

RegionsEurope

CountriesItaly

Commercial

Price—

Launch Year2026

AvailabilityAvailable
