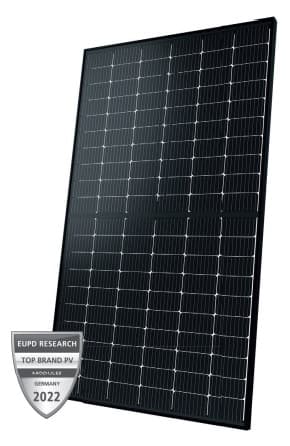

Vision GM 3.0 style 360-370
by Solarwatt GmbH · Germany
Technology: Bifacial, PERC
PERC370 W19.9% effBifacial30-Year Product Warranty
0Upvotes
Overview
Technology: Bifacial, PERC
Key Specifications
Max Power
370 W
Efficiency
19.9%
Product Warranty
30 years
Dimensions
1780 × 1052 mm
Connectors
MC4
Max System Voltage
1000 V
Launch Year
2026
Price
—
Full Specifications
Product Identity
NameVision GM 3.0 style 360-370
ManufacturerSolarwatt GmbH
CountryGermany
CategoryPERC
Cell TypeMonocrystalline
Number of Cells120
Electrical Parameters (STC)
| Model | Pmax (W) | Vmpp (V) | Impp (A) | Voc (V) | Isc (A) | Eff (%) |
|---|
Mechanical Characteristics
Dimensions1780 × 1052 × 40 mm
Weight25 kg
Front GlassAnti-reflection Coating, Tempered
Back Glass
FrameAluminium, Black
Junction BoxIP 67
Output Cables4 mm2
ConnectorsMC4
Mechanical Load0 Pa
Operating & Temperature
Operating Temperature-40°C to 85°C
Max System Voltage1000 V DC
Max Series Fuse Rating0 A
Power Tolerance
NMOT44 °C
Temp Coeff Pmax-0.34 %/°C
Temp Coeff Voc-0.27 %/°C
Temp Coeff Isc0.04 %/°C
Warranty
Product Warranty30 years
Power Warranty30 years (90% at year 30)
Bifacial Output (Rear-side Power Gain)
Certifications & Regions
Certifications—
RegionsEurope
CountriesGermany
Commercial
Price—
Launch Year2026
AvailabilityAvailable
