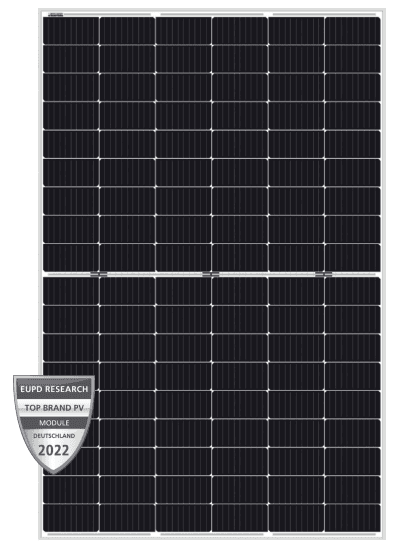

Vision AM 4.0 pure 405
by Solarwatt GmbH · Germany
Technology: Bifacial, PERC
PERC405 W20.7% effBifacial30-Year Product Warranty
0Upvotes
Overview
Technology: Bifacial, PERC
Key Specifications
Max Power
405 W
Efficiency
20.7%
Product Warranty
30 years
Dimensions
1722 × 1134 mm
Connectors
MC4
Max System Voltage
1500 V
Launch Year
2026
Price
—
Full Specifications
Product Identity
NameVision AM 4.0 pure 405
ManufacturerSolarwatt GmbH
CountryGermany
CategoryPERC
Cell TypeMonocrystalline
Number of Cells108
Electrical Parameters (STC)
| Model | Pmax (W) | Vmpp (V) | Impp (A) | Voc (V) | Isc (A) | Eff (%) |
|---|
Mechanical Characteristics
Dimensions1722 × 1134 × 35 mm
Weight25.4 kg
Front GlassAnti-reflection Coating, Tempered
Back Glass
FrameAluminium
Junction BoxIP 68
Output Cables4 mm2
ConnectorsMC4
Mechanical Load0 Pa
Operating & Temperature
Operating Temperature-40°C to 85°C
Max System Voltage1500 V DC
Max Series Fuse Rating0 A
Power Tolerance
NMOT44 °C
Temp Coeff Pmax-0.33 %/°C
Temp Coeff Voc-0.25 %/°C
Temp Coeff Isc0.05 %/°C
Warranty
Product Warranty30 years
Power Warranty30 years (87% at year 30)
Bifacial Output (Rear-side Power Gain)
Certifications & Regions
Certifications—
RegionsEurope
CountriesGermany
Commercial
Price—
Launch Year2026
AvailabilityAvailable
