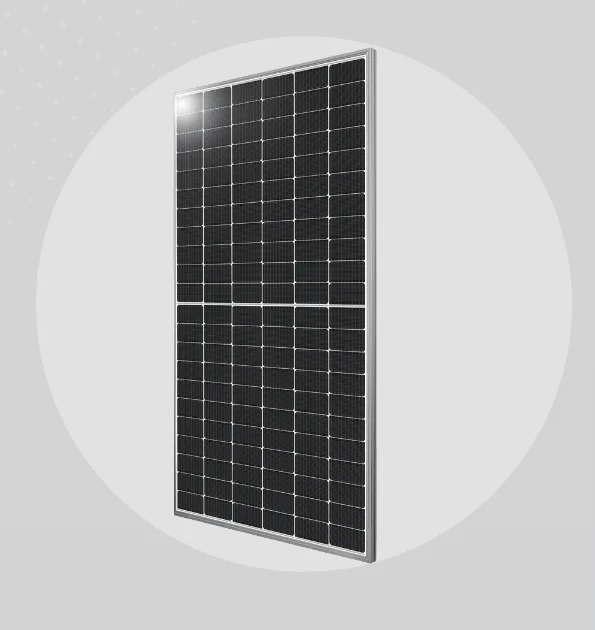

SIL-520 XM Bifacial

Name: SIL-520 XM Bifacial
Brand: Silfab Solar Inc.

Commercial SIL-520 XM Bifacial Technology: Monocrystalline Silfab solar panels are designed and engineered specifically for the North American environment. We incorporate advanced robotics, automation and the latest innovations in solar technology into our manufacturing process to deliver efficient, reliable, high-quality panels with one of the lowest defect rates in the industry.

Other384 W21.9% eff

0Upvotes

Overview

Key Specifications

Max Power

384 W

Efficiency

21.9%

Product Warranty

12 years

Dimensions

2098 × 1133 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2025

Price

—

Full Specifications

Product Identity

NameSIL-520 XM Bifacial

ManufacturerSilfab Solar Inc.

CountryUnited States

CategoryOther

Cell TypeMonocrystalline

Number of Cells132

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)
SIL-520 XM Bifacial	384	37.24	10.31	43.71	10.96	21.9%

Mechanical Characteristics

Dimensions2098 × 1133 × 35 mm

Weight26.2 kg

Front GlassAnti-reflection Coating, Tempered

Back GlassTempered

FrameAnodized Aluminium

Junction BoxIP 68

Output Cables1350 mm / 4 mm2

ConnectorsMC4

Mechanical Load5400 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating30 A

Power Tolerance0 ~ +1.9 %

NMOT45±2 °C

Temp Coeff Pmax-0.29 %/°C

Temp Coeff Voc-0.24 %/°C

Temp Coeff Isc0.04 %/°C

Warranty

Product Warranty12 years

Power Warranty30 years (89.3% at year 30)

Certifications & Regions

Certifications—

RegionsNorth America

CountriesUnited States

Commercial

Price—

Launch Year2025

AvailabilityAvailable
