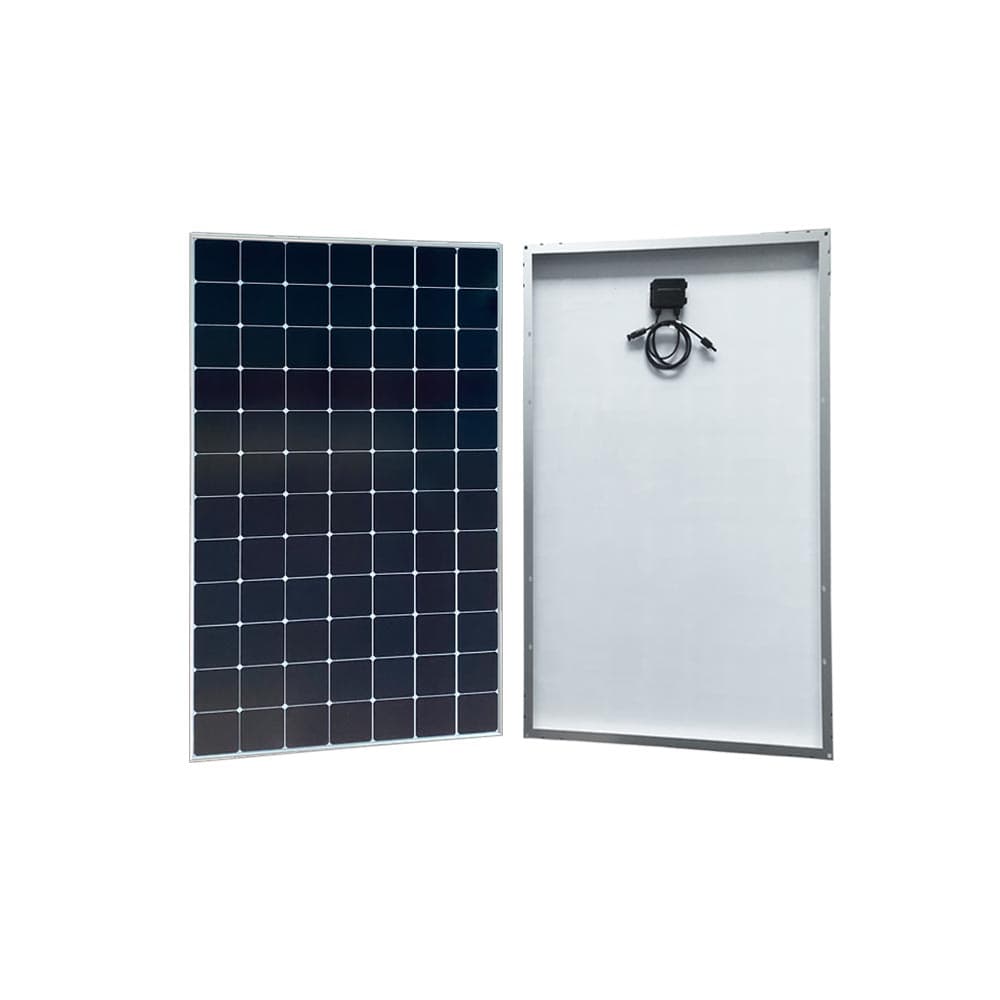

eRigid M180W

Name: eRigid M180W
Brand: Shenzhen Ahony Power Co., Ltd.

by Shenzhen Ahony Power Co., Ltd. · China

Technology: Monocrystalline AHONY POWER is one of the most competitive manufacturer of ultralight semi flexible solar panel.We have more than 13 years solar experience,factory is managed under ISO quality system,products are certified byCE,ROHS,SGS,IEC60512,ISO9001.AHONY produce,cusotmize,OEM solar panel for rv,camp,marine,smart solar system,balcony,boat etc,exporting to North America,Asia like Japan,South Korea,Europe,Australia,South Africa etc. Products:flexible solar panel,foldable solar kit,glass solar module,solar power integration etc. Featured product: eGo S series AP2 semi flexible solar panel eMarvel series marine grade solar panel eMobi foldable solar kit

Other180 W22.7% eff

0Upvotes

Overview

Key Specifications

Max Power

180 W

Efficiency

22.7%

Product Warranty

12 years

Dimensions

1180 × 770 mm

Connectors

MC4

Max System Voltage

1000 V

Launch Year

2025

Price

—

Full Specifications

Product Identity

NameeRigid M180W

ManufacturerShenzhen Ahony Power Co., Ltd.

CountryChina

CategoryOther

Cell TypeMonocrystalline

Number of Cells72

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)
eRigid M180W	180	20.88	8.63	24.22	9.15	22.7%

Mechanical Characteristics

Dimensions1180 × 770 × 35 mm

Weight10.2 kg

Front GlassTempered

Back GlassTempered

FrameAnodized Aluminium

Junction BoxIP 67

Output Cables900 mm / 4 mm2

ConnectorsMC4

Mechanical Load5400 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1000 V DC

Max Series Fuse Rating20 A

Power Tolerance-3 ~ +3 %

NMOT45 °C

Temp Coeff Pmax-0.41 %/°C

Temp Coeff Voc-0.32 %/°C

Temp Coeff Isc0.04 %/°C

Warranty

Product Warranty12 years

Power Warranty25 years (80% at year 25)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2025

AvailabilityAvailable
