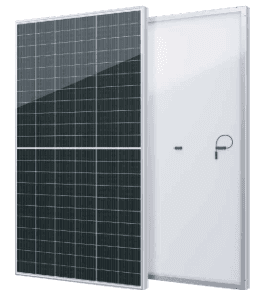

SEG-665-BMC-HV

Name: SEG-665-BMC-HV
Brand: SEG Solar Inc.

by SEG Solar Inc. · United States

Visit site

Alpine Series 655-670W BMC-HV Technology: Monocrystalline

Other500 W21.41% eff

0Upvotes

Overview

Alpine Series 655-670W BMC-HV Technology: Monocrystalline

Key Specifications

Max Power

500 W

Efficiency

21.41%

Product Warranty

1 years

Dimensions

2384 × 1303 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2025

Price

—

Full Specifications

Product Identity

NameSEG-665-BMC-HV

ManufacturerSEG Solar Inc.

CountryUnited States

CategoryOther

Cell TypeMonocrystalline

Number of Cells132

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)
SEG-665-BMC-HV	500	36.06	13.86	43.78	14.79	21.41%

Mechanical Characteristics

Dimensions2384 × 1303 × 35 mm

Weight34 kg

Front GlassAnti-reflection Coating, Tempered

Back GlassTempered

FrameAnodized Aluminium

Junction BoxIP 68

Output Cables1200 mm / 4 mm2

ConnectorsMC4

Mechanical Load5400 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating30 A

Power Tolerance0 ~ +0.75 %

NMOT45±2 °C

Temp Coeff Pmax-0.35 %/°C

Temp Coeff Voc-0.27 %/°C

Temp Coeff Isc0.05 %/°C

Warranty

Product Warranty1 years

Power Warranty25 years (84.8% at year 25)

Certifications & Regions

Certifications—

RegionsNorth America

CountriesUnited States

Commercial

Price—

Launch Year2025

AvailabilityAvailable
