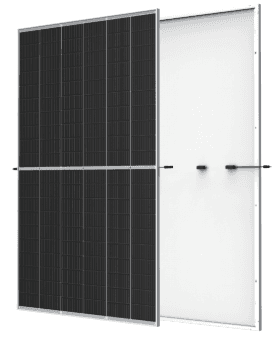

Alpine Series 595-610W BMB-HV
by SEG Solar Inc. · United States
Visit siteTechnology: PERC
PERC610 W21.55% eff
0Upvotes
Overview
Technology: PERC
Key Specifications
Max Power
610 W
Efficiency
21.55%
Product Warranty
15 years
Dimensions
2172 × 1303 mm
Connectors
MC4
Max System Voltage
1500 V
Launch Year
2026
Price
—
Full Specifications
Product Identity
NameAlpine Series 595-610W BMB-HV
ManufacturerSEG Solar Inc.
CountryUnited States
CategoryPERC
Cell TypeMonocrystalline
Number of Cells120
Electrical Parameters (STC)
| Model | Pmax (W) | Vmpp (V) | Impp (A) | Voc (V) | Isc (A) | Eff (%) |
|---|
Mechanical Characteristics
Dimensions2172 × 1303 × 35 mm
Weight31 kg
Front GlassAnti-reflection Coating, Tempered
Back Glass
FrameAnodized Aluminium
Junction BoxIP 68
Output Cables
ConnectorsMC4
Mechanical Load0 Pa
Operating & Temperature
Operating Temperature-40°C to 85°C
Max System Voltage1500 V DC
Max Series Fuse Rating30 A
Power Tolerance0 ~ +0.83 %
NMOT45±2 °C
Temp Coeff Pmax-0.34 %/°C
Temp Coeff Voc-0.25 %/°C
Temp Coeff Isc0.04 %/°C
Warranty
Product Warranty15 years
Power Warranty25 years (84.8% at year 25)
Certifications & Regions
Certifications—
RegionsNorth America
CountriesUnited States
Commercial
Price—
Launch Year2026
AvailabilityAvailable
