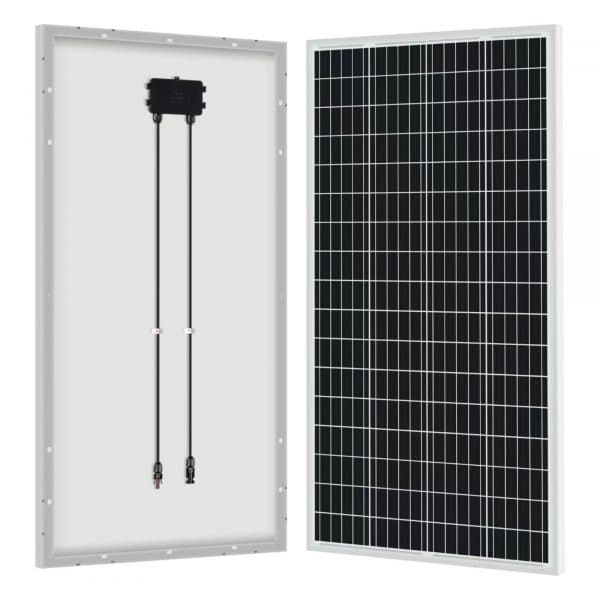

150

Name: 150
Brand: Ningbo Honsun Electronic Technology Co. Ltd (Maxsolar Energy Co. Ltd)

by Ningbo Honsun Electronic Technology Co. Ltd (Maxsolar Energy Co. Ltd) · China

Visit site

150W/18V Mono Technology: Monocrystalline

Other150 W20% eff

0Upvotes

Overview

150W/18V Mono Technology: Monocrystalline

Key Specifications

Max Power

150 W

Efficiency

20%

Product Warranty

12 years

Dimensions

1275 × 680 mm

Connectors

MC4

Max System Voltage

1000 V

Launch Year

2025

Price

—

Full Specifications

Product Identity

Name150

ManufacturerNingbo Honsun Electronic Technology Co. Ltd (Maxsolar Energy Co. Ltd)

CountryChina

CategoryOther

Cell TypeMonocrystalline

Number of Cells0

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)
150	150	18.8	7.98	22.7	8.33	20%

Mechanical Characteristics

Dimensions1275 × 680 × 35 mm

Weight9.3 kg

Front GlassAnti-reflection Coating, Tempered

Back GlassTempered

FrameAnodized Aluminium

Junction BoxIP 65

Output Cables300 / 4 mm2

ConnectorsMC4

Mechanical Load5400 Pa

Operating & Temperature

Operating Temperature-40°C to 90°C

Max System Voltage1000 V DC

Max Series Fuse Rating20 A

Power Tolerance0 ~ +3 %

NMOT45 °C

Temp Coeff Pmax-0.35 %/°C

Temp Coeff Voc-0.28 %/°C

Temp Coeff Isc0.04 %/°C

Warranty

Product Warranty12 years

Power Warranty25 years (80% at year 25)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2025

AvailabilityAvailable
