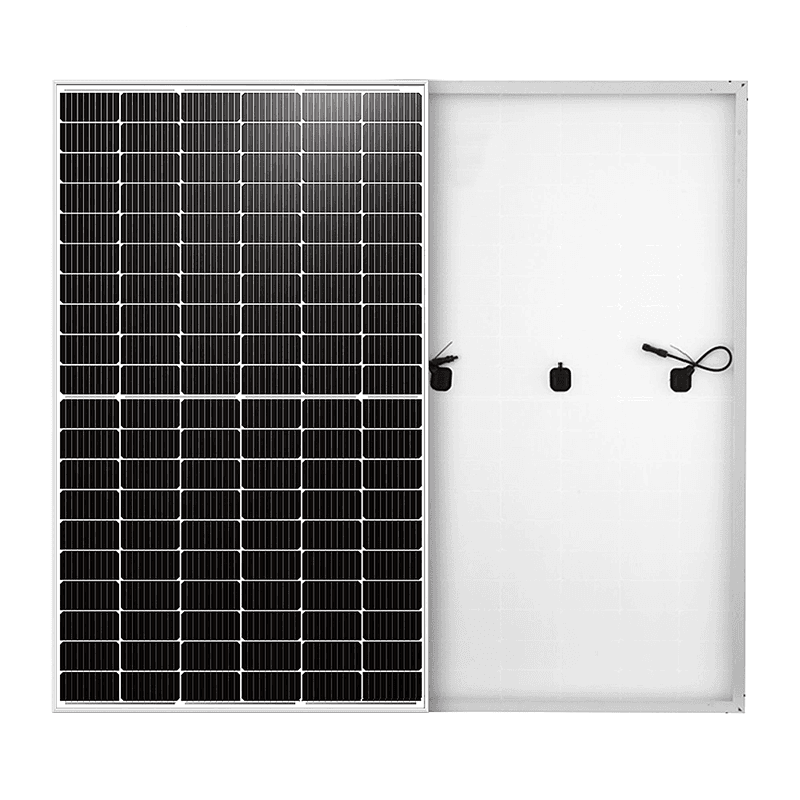

NB120M-NM10P-A(460~480)
by NBS Energy Group Co., Ltd. · Taiwan
Technology: PERC, N-type
PERC480 W22.21% eff
0Upvotes
Overview
Technology: PERC, N-type
Key Specifications
Max Power
480 W
Efficiency
22.21%
Product Warranty
12 years
Dimensions
1908 × 1133 mm
Connectors
Max System Voltage
1500 V
Launch Year
2026
Price
—
Full Specifications
Product Identity
NameNB120M-NM10P-A(460~480)
ManufacturerNBS Energy Group Co., Ltd.
CountryTaiwan
CategoryPERC
Cell TypeMonocrystalline
Number of Cells120
Electrical Parameters (STC)
| Model | Pmax (W) | Vmpp (V) | Impp (A) | Voc (V) | Isc (A) | Eff (%) |
|---|
Mechanical Characteristics
Dimensions1908 × 1133 × 30 mm
Weight22.4 kg
Front GlassTempered
Back Glass
FrameAnodized Aluminium
Junction BoxIP 68
Output Cables4 mm2
Connectors
Mechanical Load0 Pa
Operating & Temperature
Operating Temperature-40°C to 85°C
Max System Voltage1500 V DC
Max Series Fuse Rating25 A
Power Tolerance-3 ~ +3 %
NMOT45±2 °C
Temp Coeff Pmax-0.3 %/°C
Temp Coeff Voc-0.249 %/°C
Temp Coeff Isc0.045 %/°C
Warranty
Product Warranty12 years
Power Warranty30 years (87.4% at year 30)
Certifications & Regions
Certifications—
RegionsAsia-Pacific
CountriesTaiwan
Commercial
Price—
Launch Year2026
AvailabilityAvailable
