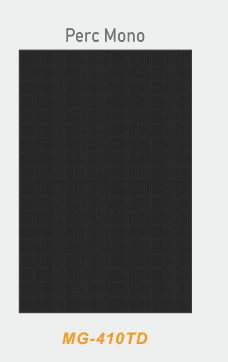

MG-385-410TD

Name: MG-385-410TD
Brand: Mogen Solar Ltd.

Technology: PERC Mogen Solar specializes in research, development, production, and sales of solar PV products. Since its foundation in 2010, Mogen Solar has accomplished significant achievements which outpaced most of our main competitors in terms of production capacity and in the number of innovative designs. Mogen Solar upholds its belief that innovation is the key driver behind advancement by pursuing new technologies and higher efficiencies. Currently, Mogen Solar has module production capacity of 3 GW. Mogen Solar serves worldwide customers with high-quality products and professional services. Today, we have two offices in Spain and Netherlands. We are expanding fast in European market, we are going to construct a line inThailand for our U.S market.

PERC410 W21% eff

0Upvotes

Overview

Key Specifications

Max Power

410 W

Efficiency

21%

Product Warranty

10 years

Dimensions

1722 × 1134 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameMG-385-410TD

ManufacturerMogen Solar Ltd.

CountryChina

CategoryPERC

Cell TypeMonocrystalline

Number of Cells108

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions1722 × 1134 × 30 mm

Weight21.5 kg

Front GlassAnti-reflection Coating, Tempered

Back Glass

FrameAnodized Aluminium, Black

Junction BoxIP 68

Output Cables4 mm2

ConnectorsMC4

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating25 A

Power Tolerance0 ~ +1.26 %

NMOT45±2 °C

Temp Coeff Pmax-0.35 %/°C

Temp Coeff Voc-0.275 %/°C

Temp Coeff Isc0.045 %/°C

Warranty

Product Warranty10 years

Power Warranty25 years (86% at year 25)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2026

AvailabilityAvailable
