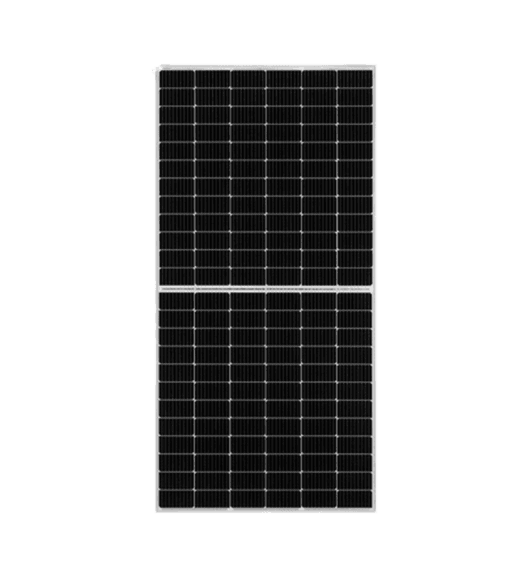

LS530-550BF

Name: LS530-550BF
Brand: LA Solar Factory LLC

Technology: PERC LA Solar founded in 2019, is an Armenian company producing solar modules. The company's choice is the Swiss Meyer Burger system, one of the best in the world. This system is being used in the manufacturing of modern generator equipment developed by the Swiss company Meyer Burger. The solar modules of the plant pass the most important stages of quality control before arriving at the consumer and meet the quality standards of the USA and Europe. Thanks to the latest technologies used in the Solar field, LA Solar panels absorb several times more sunlight than panels produced by other technologies.

PERC550 W21.28% eff

0Upvotes

Overview

Key Specifications

Max Power

550 W

Efficiency

21.28%

Product Warranty

10 years

Dimensions

2279 × 1134 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameLS530-550BF

ManufacturerLA Solar Factory LLC

CountryUnited States

CategoryPERC

Cell TypeMonocrystalline

Number of Cells144

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions2279 × 1134 × 35 mm

Weight26.5 kg

Front GlassAnti-reflection Coating, Tempered

Back Glass

FrameAnodized Aluminium

Junction BoxIP 68

Output Cables

ConnectorsMC4

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 80°C

Max System Voltage1500 V DC

Max Series Fuse Rating35 A

Power Tolerance0 ~ +3 %

NMOT46±2 °C

Temp Coeff Pmax-0.35 %/°C

Temp Coeff Voc-0.27 %/°C

Temp Coeff Isc0.05 %/°C

Warranty

Product Warranty10 years

Power Warranty30 years (84.2% at year 30)

Certifications & Regions

Certifications—

RegionsNorth America

CountriesUnited States

Commercial

Price—

Launch Year2026

AvailabilityAvailable
