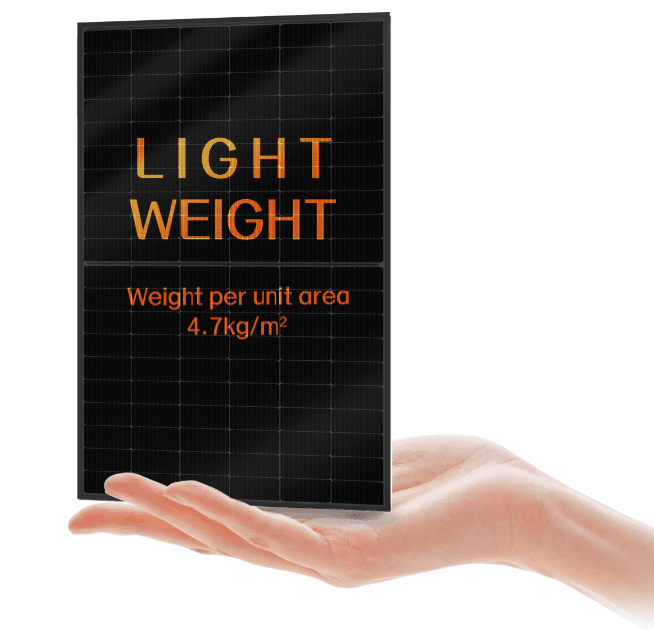

L Series SSD405AH5T 405-420W

Name: L Series SSD405AH5T 405-420W
Brand: Jiangsu Sunport Power Corp., Ltd.

by Jiangsu Sunport Power Corp., Ltd. · China

Technology: PERC, TOPCon, Flexible, BIPV Founded in 2012, Sunport Power has more than 13 years’ experience in advanced photovoltaic technology R&D, such as back contact technology, TOPCon technology, etc. Renowned for lightweight PV module manufacturing, Sunport Power provides comprehensive solution for different rooftops with limited load capacity. Meanwhile, Sunport Power also provides high quality PERC and TOPCon modules at competitive price.

PERC420 W21.5% eff

0Upvotes

Overview

Key Specifications

Max Power

420 W

Efficiency

21.5%

Product Warranty

12 years

Dimensions

1724 × 1132 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameL Series SSD405AH5T 405-420W

ManufacturerJiangsu Sunport Power Corp., Ltd.

CountryChina

CategoryPERC

Cell TypeMonocrystalline

Number of Cells108

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions1724 × 1132 × 30 mm

Weight10.9 kg

Front GlassTempered

Back Glass

FrameAnodized Aluminium

Junction BoxIP 68

Output Cables4 mm2

ConnectorsMC4

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating25 A

Power Tolerance0 ~ +1 %

NMOT43±2 °C

Temp Coeff Pmax-0.35 %/°C

Temp Coeff Voc-0.26 %/°C

Temp Coeff Isc0.048 %/°C

Warranty

Product Warranty12 years

Power Warranty25 years (84.8% at year 25)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2026

AvailabilityAvailable
