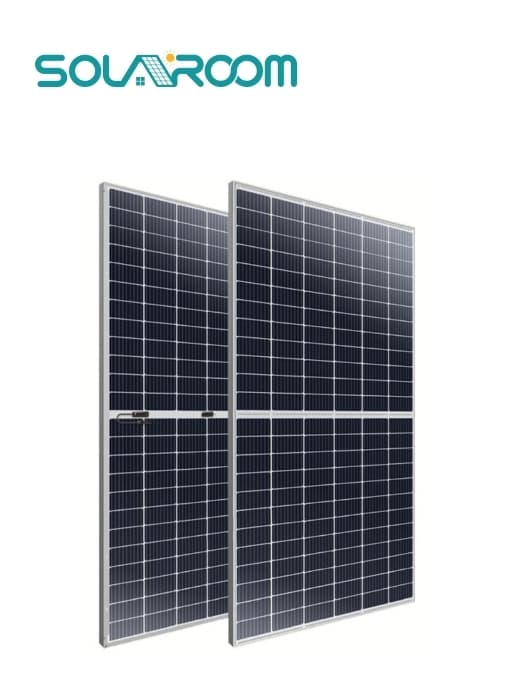

SRM390-415M10

Name: SRM390-415M10
Brand: Hunan Solaroom Technology Co., Ltd.

by Hunan Solaroom Technology Co., Ltd. · China

Technology: PERC Hunan Solaroom Technology Co., Ltd is a modern energy cooperation that specializes in renewable green power resources. We provide full range of solar power system solutions from R&D, design to manufacturing. Solaroom offer business service for solar off grid system, solar on grid system, solar hybrid system, solar pump system and solar portable products. Solaroom has an international engineering team with rich experience on project preparation, system design and construction, solar product supply chain, project commissioning, project acceptance, system operation, system maintenance, power station monitoring and evaluating.Solaroom works on advantage technology and high quality products with outstanding service.

PERC415 W21.3% eff

0Upvotes

Overview

Key Specifications

Max Power

415 W

Efficiency

21.3%

Product Warranty

12 years

Dimensions

1722 × 1134 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameSRM390-415M10

ManufacturerHunan Solaroom Technology Co., Ltd.

CountryChina

CategoryPERC

Cell TypeMonocrystalline

Number of Cells108

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions1722 × 1134 × 30 mm

Weight20.5 kg

Front GlassAnti-reflection Coating, Tempered

Back Glass

FrameAnodized Aluminium

Junction BoxIP 68

Output Cables4 mm2

ConnectorsMC4

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating25 A

Power Tolerance0 ~ +1.24 %

NMOT45±2 °C

Temp Coeff Pmax-0.35 %/°C

Temp Coeff Voc-0.275 %/°C

Temp Coeff Isc0.045 %/°C

Warranty

Product Warranty12 years

Power Warranty25 years (84.8% at year 25)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2026

AvailabilityAvailable
