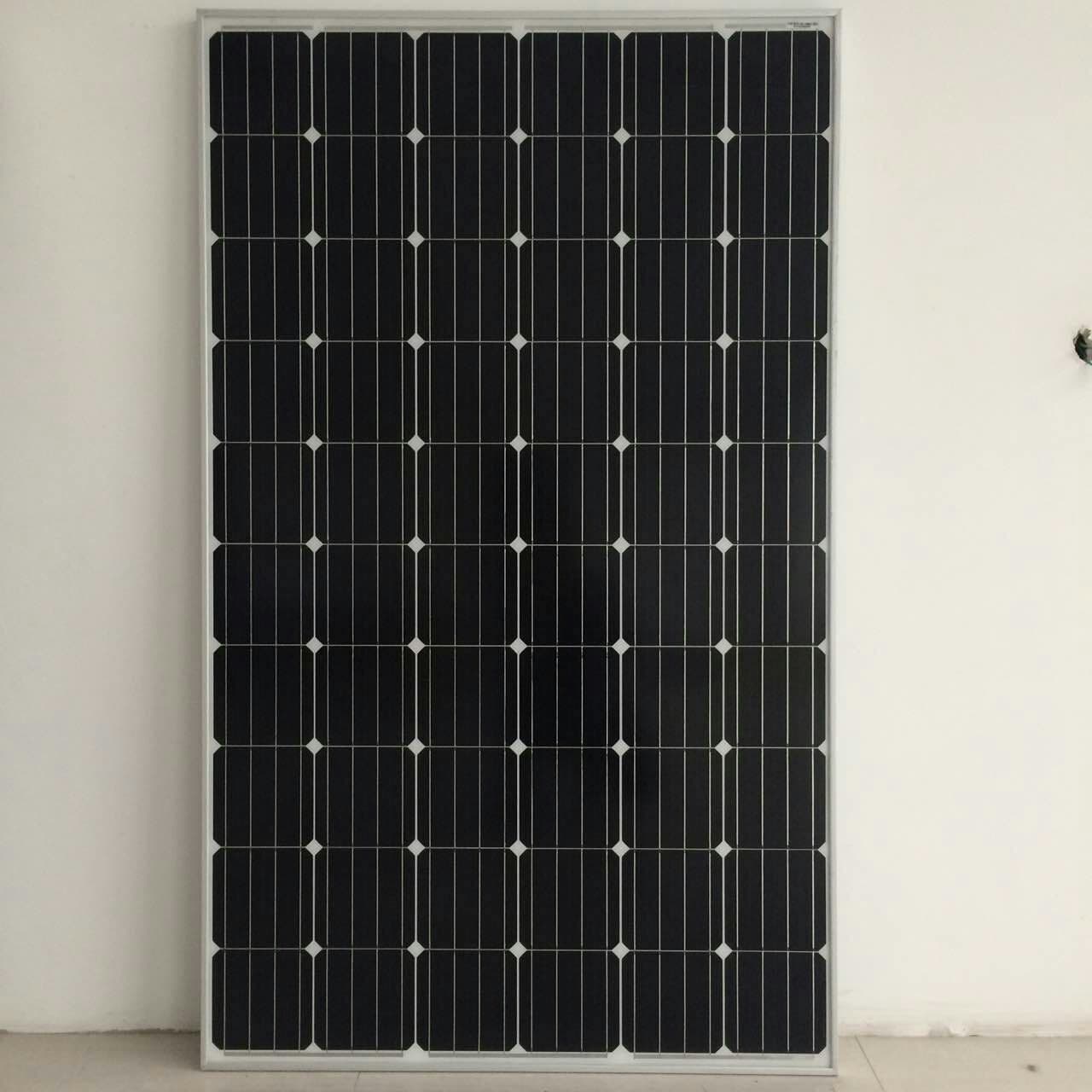

HBG-275W Mono

Name: HBG-275W Mono
Brand: Hebei BangGu Technology Co., Ltd.

by Hebei BangGu Technology Co., Ltd. · China

Technology: Monocrystalline Hebei BangGu Technology Co.,Ltd is specialized in solar modules ,solar lithium battery system producing and research . We offer high quality products to the worldwide. The Products are mainly used in commercial, household and industrial solar power systems and power plant stations etc. The company has perfect manufacturing capability and new product research and development capability. With many years experience in solar field,we have professional technical engineers can offer products design,solar one-stop solutions services.

Other202 W20% eff

0Upvotes

Overview

Key Specifications

Max Power

202 W

Efficiency

20%

Product Warranty

12 years

Dimensions

1640 × 992 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2025

Price

—

Full Specifications

Product Identity

NameHBG-275W Mono

ManufacturerHebei BangGu Technology Co., Ltd.

CountryChina

CategoryOther

Cell TypeMonocrystalline

Number of Cells60

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)
HBG-275W Mono	202	28.8	7.02	35.7	7.52	20%

Mechanical Characteristics

Dimensions1640 × 992 × 40 mm

Weight18.75 kg

Front GlassAnti-reflection Coating

Back GlassTempered

FrameAluminium

Junction BoxIP 65

Output Cables300 / 4 mm2

ConnectorsMC4

Mechanical Load5400 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating20 A

Power Tolerance0 ~ +3 %

NMOT43±2 °C

Temp Coeff Pmax-0.35 %/°C

Temp Coeff Voc-0.28 %/°C

Temp Coeff Isc0.04 %/°C

Warranty

Product Warranty12 years

Power Warranty25 years (80% at year 25)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2025

AvailabilityAvailable
