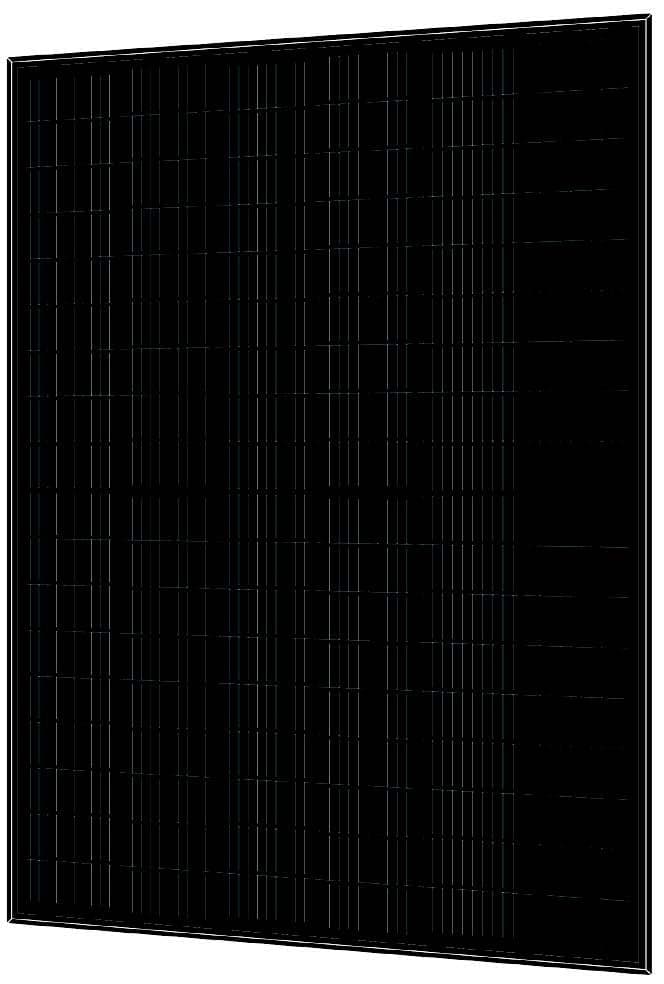

GSM-MT4/108-TDGB410-430
by Grand Sunergy Tech Co., Ltd. · China
Visit siteTechnology: PERC
PERC430 W21.99% eff
0Upvotes
Overview
Technology: PERC
Key Specifications
Max Power
430 W
Efficiency
21.99%
Product Warranty
12 years
Dimensions
1724 × 1134 mm
Connectors
Max System Voltage
1500 V
Launch Year
2026
Price
—
Full Specifications
Product Identity
NameGSM-MT4/108-TDGB410-430
ManufacturerGrand Sunergy Tech Co., Ltd.
CountryChina
CategoryPERC
Cell TypeOther
Number of Cells108
Electrical Parameters (STC)
| Model | Pmax (W) | Vmpp (V) | Impp (A) | Voc (V) | Isc (A) | Eff (%) |
|---|
Mechanical Characteristics
Dimensions1724 × 1134 × 30 mm
Weight24.5 kg
Front Glass
Back Glass
FrameAnodized Aluminium
Junction BoxIP 68
Output Cables4 mm2
Connectors
Mechanical Load0 Pa
Operating & Temperature
Operating Temperature-40°C to 85°C
Max System Voltage1500 V DC
Max Series Fuse Rating30 A
Power Tolerance
NMOT44±2 °C
Temp Coeff Pmax-0.29 %/°C
Temp Coeff Voc-0.25 %/°C
Temp Coeff Isc0.045 %/°C
Warranty
Product Warranty12 years
Power Warranty25 years (87.4% at year 25)
Certifications & Regions
Certifications—
RegionsAsia-Pacific
CountriesChina
Commercial
Price—
Launch Year2026
AvailabilityAvailable
