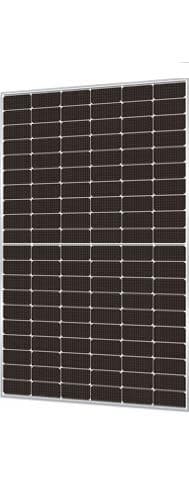

GSM-MP3/120-BMDG595

Name: GSM-MP3/120-BMDG595
Brand: Grand Sunergy Tech Co., Ltd.

by Grand Sunergy Tech Co., Ltd. · China

Visit site

GSM-MP3/120-BMDG590-610 Technology: Bifacial, PERC

PERC442 W21.02% effBifacial30-Year Product Warranty

0Upvotes

Overview

GSM-MP3/120-BMDG590-610 Technology: Bifacial, PERC

Key Specifications

Max Power

442 W

Efficiency

21.02%

Product Warranty

30 years

Dimensions

2172 × 1303 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2025

Price

—

Full Specifications

Product Identity

NameGSM-MP3/120-BMDG595

ManufacturerGrand Sunergy Tech Co., Ltd.

CountryChina

CategoryPERC

Cell TypeBifacial, PERC

Number of Cells120

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)
GSM-MP3/120-BMDG595	442	32.32	13.69	37.68	14.89	21.02%

Mechanical Characteristics

Dimensions2172 × 1303 × 35 mm

Weight35 kg

Front GlassTempered

Back GlassTempered

FrameAnodized Aluminium

Junction BoxIP 68

Output Cables300 mm / 4 mm2

ConnectorsMC4

Mechanical Load5400 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating35 A

Power Tolerance0 ~ +3 %

NMOT44±2 °C

Temp Coeff Pmax-0.34 %/°C

Temp Coeff Voc-0.265 %/°C

Temp Coeff Isc0.05 %/°C

Warranty

Product Warranty30 years

Power Warranty30 years (85% at year 30)

Bifacial Output (Rear-side Power Gain)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2025

AvailabilityAvailable
