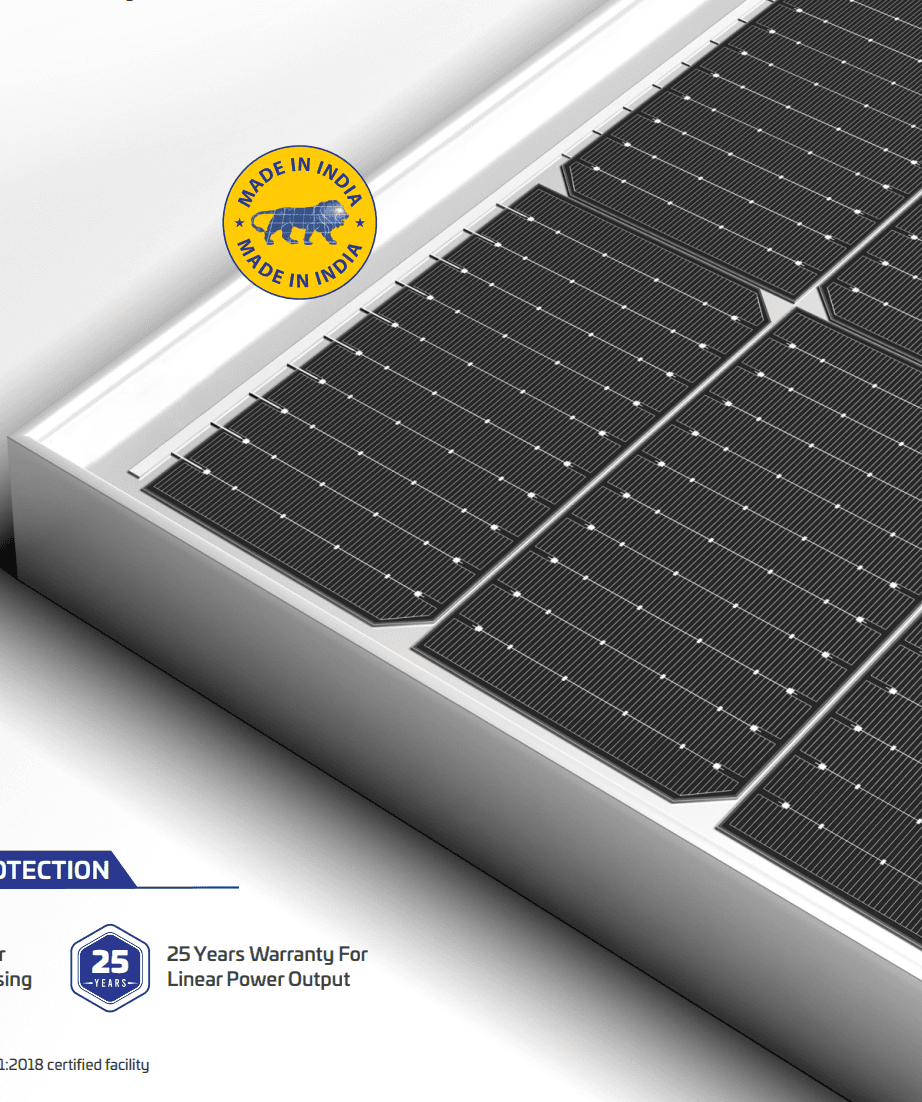

Heloc Pro-108 Cells 390-415W White GS10-M108-WF
by Goldi Solar Pvt Ltd · India
Technology: PERC
PERC415 W21.17% eff
0Upvotes
Overview
Technology: PERC
Key Specifications
Max Power
415 W
Efficiency
21.17%
Product Warranty
12 years
Dimensions
1730 × 1133 mm
Connectors
MC4
Max System Voltage
1500 V
Launch Year
2026
Price
—
Full Specifications
Product Identity
NameHeloc Pro-108 Cells 390-415W White GS10-M108-WF
ManufacturerGoldi Solar Pvt Ltd
CountryIndia
CategoryPERC
Cell TypeMonocrystalline
Number of Cells108
Electrical Parameters (STC)
| Model | Pmax (W) | Vmpp (V) | Impp (A) | Voc (V) | Isc (A) | Eff (%) |
|---|
Mechanical Characteristics
Dimensions1730 × 1133 × 35 mm
Weight21 kg
Front GlassAnti-reflection Coating, Tempered
Back Glass
FrameAnodized Aluminium
Junction BoxIP 68
Output Cables4 mm2
ConnectorsMC4
Mechanical Load0 Pa
Operating & Temperature
Operating Temperature-40°C to 85°C
Max System Voltage1500 V DC
Max Series Fuse Rating25 A
Power Tolerance0 ~ +2 %
NMOT45±2 °C
Temp Coeff Pmax-0.35 %/°C
Temp Coeff Voc-0.28 %/°C
Temp Coeff Isc0.048 %/°C
Warranty
Product Warranty12 years
Power Warranty25 years (84.8% at year 25)
Certifications & Regions
Certifications—
RegionsAsia-Pacific
CountriesIndia
Commercial
Price—
Launch Year2026
AvailabilityAvailable
