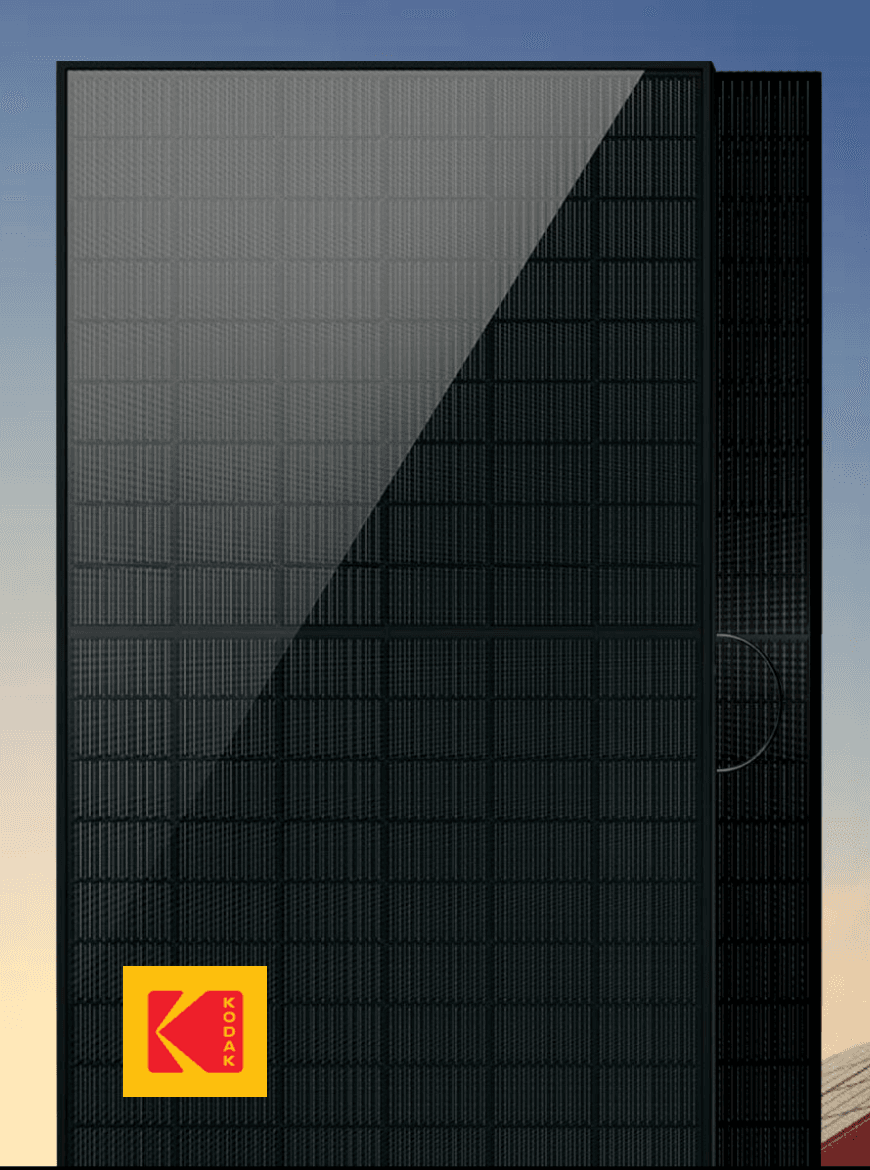

425 W

Name: 425 W
Brand: Eastman Kodak Company

by Eastman Kodak Company · United States

425W FBBI AM Technology: Monocrystalline KODAK Solar Products Generating clean, sustainable energy from the sun. Start generating clean, sustainable energy from the sun today and begin to see enhancements to your home life and business operations. Save with KODAK branded panels, inverters and batteries.

Other320 W21.51% eff40-Year Product Warranty

0Upvotes

Overview

Key Specifications

Max Power

320 W

Efficiency

21.51%

Product Warranty

40 years

Dimensions

1722 × 1134 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2025

Price

—

Full Specifications

Product Identity

Name425 W

ManufacturerEastman Kodak Company

CountryUnited States

CategoryOther

Cell TypeMonocrystalline

Number of Cells108

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)
425 W	320	30.1	10.64	36.3	11.34	21.51%

Mechanical Characteristics

Dimensions1722 × 1134 × 30 mm

Weight22 kg

Front GlassTempered

Back GlassTempered

FrameAnodized Aluminium, Black

Junction BoxIP 68

Output Cables1000 mm / 4 mm2

ConnectorsMC4

Mechanical Load5400 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating30 A

Power Tolerance0 ~ +3 %

NMOT43±2 °C

Temp Coeff Pmax-0.3 %/°C

Temp Coeff Voc-0.25 %/°C

Temp Coeff Isc0.045 %/°C

Warranty

Product Warranty40 years

Power Warranty40 years (87.4% at year 40)

Certifications & Regions

Certifications—

RegionsNorth America

CountriesUnited States

Commercial

Price—

Launch Year2025

AvailabilityAvailable
