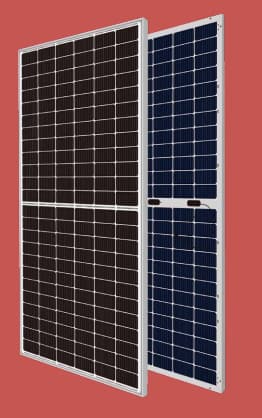

CST-M10/72GDF 535-555W

Name: CST-M10/72GDF 535-555W
Brand: Consort Solar Co., Ltd.

Technology: Bifacial, PERC Founded in 2016, Consort Solar Co., Ltd specializes in the research and development, manufacturing, and marketing of high-efficiency solar cells, photovoltaic (PV) modules, and system integration. With a track record of installing and operating over 500MW of solar projects globally, we have delivered over 1.8GW in 2023. We have a full capacity of 3GW, including 200MW off-grid, 800MW conventional PERC, 1GW TOPCON, and 1GW HJT. Our branch offices and representatives are located in the USA, Germany,and Japan, with global operation center in Singapore, third country manufacturing base in Bangladesh, and we have exported to over 100 partners worldwide.

PERC555 W21.5% effBifacial

0Upvotes

Overview

Key Specifications

Max Power

555 W

Efficiency

21.5%

Product Warranty

15 years

Dimensions

2278 × 1134 mm

Connectors

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameCST-M10/72GDF 535-555W

ManufacturerConsort Solar Co., Ltd.

CountryChina

CategoryPERC

Cell TypeMonocrystalline

Number of Cells144

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions2278 × 1134 × 30 mm

Weight32.8 kg

Front Glass

Back Glass

FrameAnodized Aluminium

Junction BoxIP 68

Output Cables4 mm2

Connectors

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating30 A

Power Tolerance0 ~ +0.92 %

NMOT42±2 °C

Temp Coeff Pmax-0.35 %/°C

Temp Coeff Voc-0.28 %/°C

Temp Coeff Isc0.05 %/°C

Warranty

Product Warranty15 years

Power Warranty30 years (84.95% at year 30)

Bifacial Output (Rear-side Power Gain)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2026

AvailabilityAvailable
