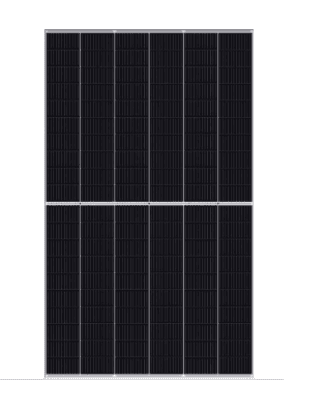

Mars Series CSUN585-610-120M
by CEEG (Jiangsu) Tech Co.，LTD · China
Technology: PERC
PERC610 W22.6% eff
0Upvotes
Overview
Technology: PERC
Key Specifications
Max Power
610 W
Efficiency
22.6%
Product Warranty
12 years
Dimensions
2172 × 1303 mm
Connectors
MC4
Max System Voltage
1500 V
Launch Year
2026
Price
—
Full Specifications
Product Identity
NameMars Series CSUN585-610-120M
ManufacturerCEEG (Jiangsu) Tech Co.，LTD
CountryChina
CategoryPERC
Cell TypeMonocrystalline
Number of Cells120
Electrical Parameters (STC)
| Model | Pmax (W) | Vmpp (V) | Impp (A) | Voc (V) | Isc (A) | Eff (%) |
|---|
Mechanical Characteristics
Dimensions2172 × 1303 × 35 mm
Weight31.5 kg
Front Glass
Back Glass
FrameAnodized Aluminium, Black
Junction BoxIP 65
Output Cables4 mm2
ConnectorsMC4
Mechanical Load0 Pa
Operating & Temperature
Operating Temperature-40°C to 85°C
Max System Voltage1500 V DC
Max Series Fuse Rating30 A
Power Tolerance0 ~ +0.5 %
NMOT45±3 °C
Temp Coeff Pmax-0.35 %/°C
Temp Coeff Voc-0.28 %/°C
Temp Coeff Isc0.048 %/°C
Warranty
Product Warranty12 years
Power Warranty25 years (84.8% at year 25)
Certifications & Regions
Certifications—
RegionsAsia-Pacific
CountriesChina
Commercial
Price—
Launch Year2026
AvailabilityAvailable
