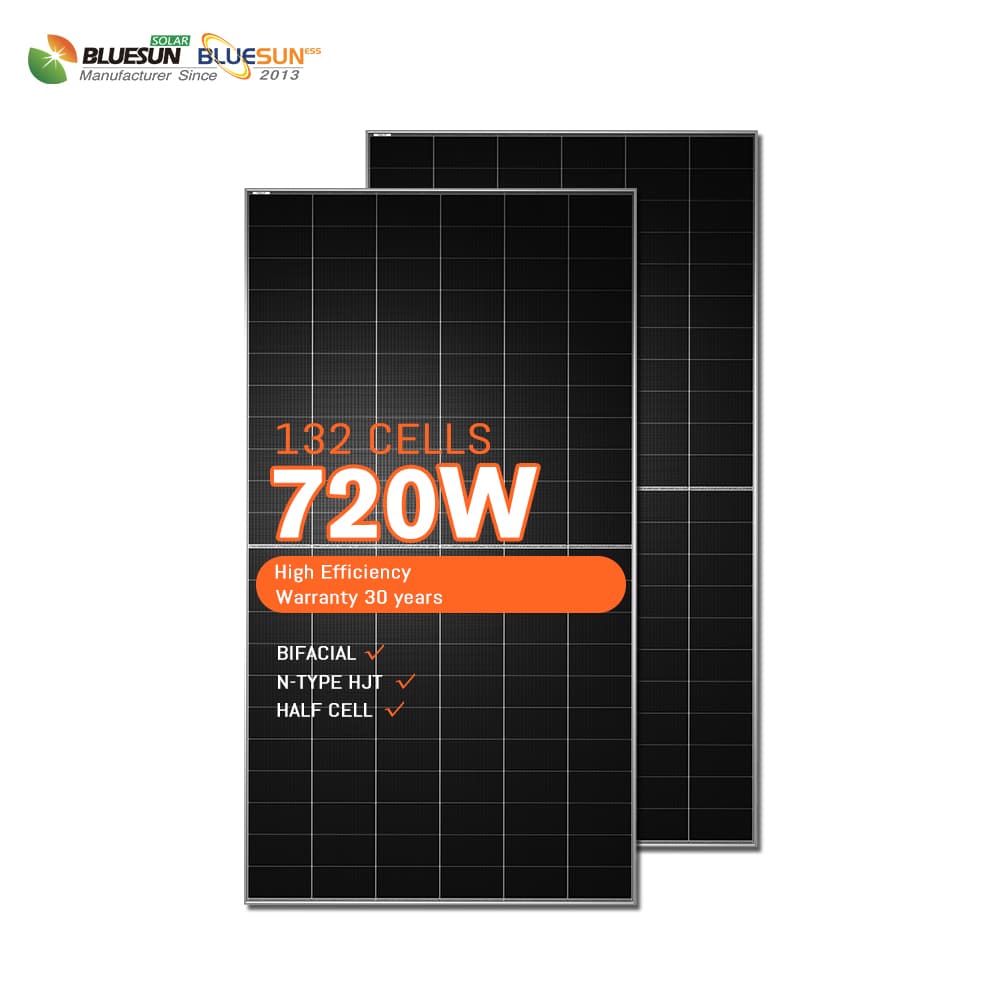

BSM720G12-66HNH Half Cell N-HJT Bifacial Solar ...

BSM720G12-66HNH Half Cell N-HJT Bifacial Solar ...

by Bluesun Solar Co., Ltd. · China

Technology: Bifacial, HJT Bluesun Solar is one of China’s leading solar solutions providers, specializing in the R&D of solar panels, lithium batteries, and BMS (Battery Management Systems). By the end of 2024, Bluesun’s products have been exported to over 185 countries and regions worldwide. Our products are certified by internationally recognized standards, including TUV, ETL, UL1703, IEC, CEC, CE, and INMETRO, meeting the highest global market requirements. Additionally, Bluesun has subsidiaries in Italy, Poland, South Africa, the United States, and Japan, with warehouses in Los Angeles, Houston, and Rotterdam. We are committed to delivering outstanding solar solutions to customers across the globe.

HJT720 W23.18% effBifacial
0

Overview

Technology: Bifacial, HJT Bluesun Solar is one of China’s leading solar solutions providers, specializing in the R&D of solar panels, lithium batteries, and BMS (Battery Management Systems). By the end of 2024, Bluesun’s products have been exported to over 185 countries and regions worldwide. Our products are certified by internationally recognized standards, including TUV, ETL, UL1703, IEC, CEC, CE, and INMETRO, meeting the highest global market requirements. Additionally, Bluesun has subsidiaries in Italy, Poland, South Africa, the United States, and Japan, with warehouses in Los Angeles, Houston, and Rotterdam. We are committed to delivering outstanding solar solutions to customers across the globe.

Key Specifications

Max Power

720 W

Efficiency

23.18%

Product Warranty

15 years

Dimensions

2384 × 1303 mm

Connectors

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameBSM720G12-66HNH Half Cell N-HJT Bifacial Solar ...
ManufacturerBluesun Solar Co., Ltd.
CountryChina
CategoryHJT
Cell TypeMonocrystalline
Number of Cells132

Electrical Parameters (STC)

ModelPmax (W)Vmpp (V)Impp (A)Voc (V)Isc (A)Eff (%)

Mechanical Characteristics

Dimensions2384 × 1303 × 33 mm
Weight37.5 kg
Front GlassTempered
Back Glass
FrameAnodized Aluminium
Junction BoxIP 68
Output Cables4 mm2
Connectors
Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C
Max System Voltage1500 V DC
Max Series Fuse Rating30 A
Power Tolerance0 ~ +1 %
NMOT42.3±2 °C
Temp Coeff Pmax-0.26 %/°C
Temp Coeff Voc-0.24 %/°C
Temp Coeff Isc0.04 %/°C

Warranty

Product Warranty15 years
Power Warranty25 years (84.8% at year 25)

Bifacial Output (Rear-side Power Gain)

Certifications & Regions

Certifications—
RegionsAsia-Pacific
CountriesChina

Commercial

Price—
Launch Year2026
AvailabilityAvailable
