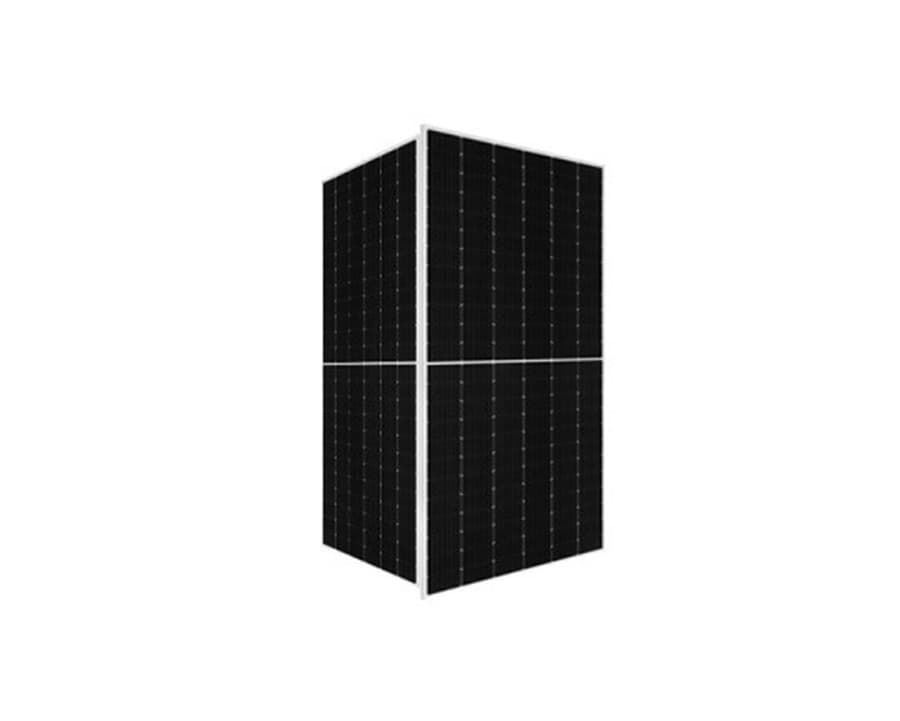

VE-535~560-72M

Name: VE-535~560-72M
Brand: Aidu Energy Co., Ltd

Technology: PERC Founded in 2016, AIDU ENERGY is focusing on the R&D and manufacturing of high-efficiency solar cells , modules and related solar products. The company adopts the world's most advanced production equipment, with high standards and strict requirements of main materials and auxiliary materials to produce high quality products. The facilities can produce POLY,MONO PERC and TOPCON. Meanwhile, we can customize products as per your requirements. We are always committed to create higher value for our customers.

PERC560 W21.7% eff

0Upvotes

Overview

Key Specifications

Max Power

560 W

Efficiency

21.7%

Product Warranty

12 years

Dimensions

2278 × 1134 mm

Connectors

MC4

Max System Voltage

1500 V

Launch Year

2026

Price

—

Full Specifications

Product Identity

NameVE-535~560-72M

ManufacturerAidu Energy Co., Ltd

CountryChina

CategoryPERC

Cell TypeMonocrystalline

Number of Cells144

Electrical Parameters (STC)

Model	Pmax (W)	Vmpp (V)	Impp (A)	Voc (V)	Isc (A)	Eff (%)

Mechanical Characteristics

Dimensions2278 × 1134 × 30 mm

Weight27.6 kg

Front GlassAnti-reflection Coating, Tempered

Back Glass

FrameAnodized Aluminium

Junction BoxIP 68

Output Cables4 mm2

ConnectorsMC4

Mechanical Load0 Pa

Operating & Temperature

Operating Temperature-40°C to 85°C

Max System Voltage1500 V DC

Max Series Fuse Rating25 A

Power Tolerance0 ~ +1.5 %

NMOT41±3 °C

Temp Coeff Pmax-0.34 %/°C

Temp Coeff Voc-0.26 %/°C

Temp Coeff Isc0.05 %/°C

Warranty

Product Warranty12 years

Power Warranty0 years (0% at year 0)

Certifications & Regions

Certifications—

RegionsAsia-Pacific

CountriesChina

Commercial

Price—

Launch Year2026

AvailabilityAvailable
