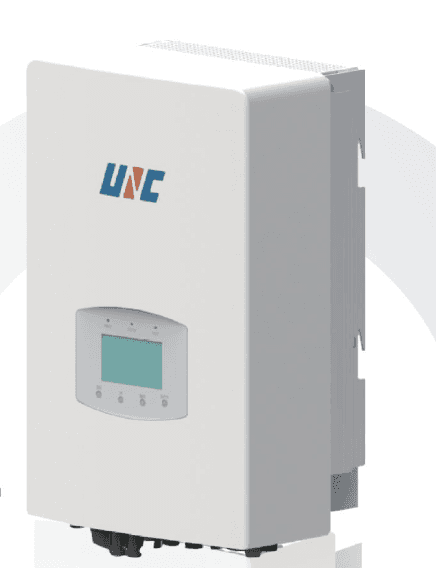

ESS1-4.6K1P-02-LV

ESS1-4.6K1P-02-LV

by Qingdao UNC Technology Co., Ltd. · China

Single Phase Hybrid 3-6KW Type: On-Grid, Hybrid

Hybrid Inverter4.6 kW97.5% peakMonitoringRS 485WLAN
0

Overview

Single Phase Hybrid 3-6KW Type: On-Grid, Hybrid

Key Specifications

Output Power

4.6 kW

Peak Efficiency

97.5%

Enclosure

IP66

Warranty

1 years

Max Input Voltage

580 V

MPPT Range

120 – 520 V

Max Output

4600 VA

Launch Year

2025

Full Specifications

Product Identity

NameESS1-4.6K1P-02-LV
Slugqingdao-unc-technology-co-ltd-ess1-4-6k1p-02-lv
ManufacturerQingdao UNC Technology Co., Ltd.
CountryChina
CategoryHybrid Inverter
Sub-categoryOn-Grid, Hybrid

DC Input

Input Channels2
MPPT Voltage Range120 – 520 V
Max Input Voltage580 V
Max Input Current30 A

AC Output

Rated Output Power4.6 kW
Max Output Power4600 VA
Rated Voltage220 V
Frequency50, 60 Hz Hz
Max Output Current23.2 A

Efficiency

Peak Efficiency97.5%

Protection & Environmental

Enclosure RatingIP66
Operating Temperature-25°C to 60°C

Physical

Weight21.5 kg
Dimensions546x362x252 mm

Communication

RS 485WLAN
Module-Level Monitoring

Commercial

Price—
Warranty1 years
Launch Year2025
StatusAvailable

Regions & Certifications

Asia-PacificChina

InverterRank

Score50
Profile Completeness100%
