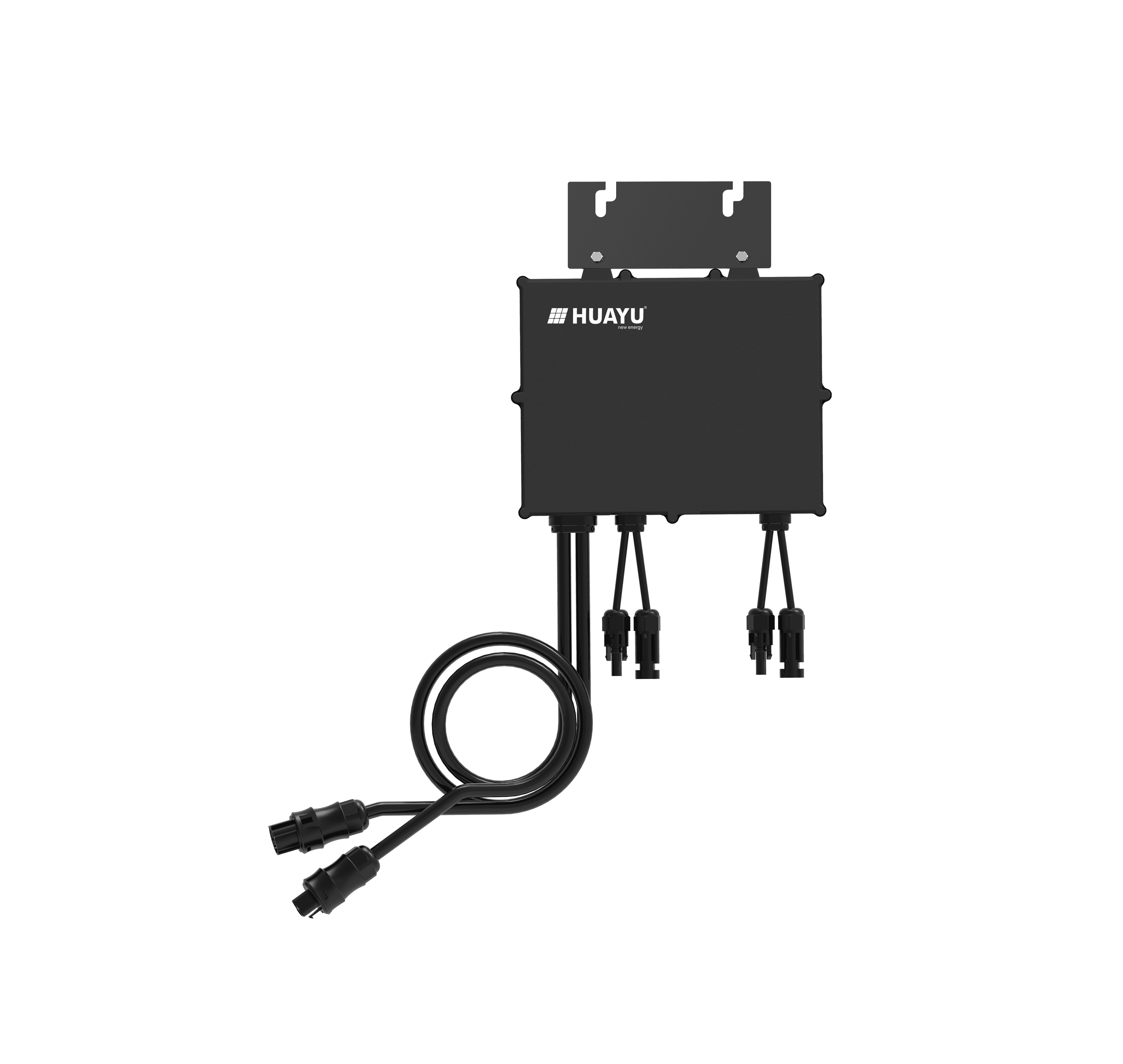

HY-600-Plus
by Huayu New Energy Technologies Co., Ltd. · China
Visit siteHY-600/800/1000-Plus Type: Micro-inverter
Microinverter660 W96.5% peakMonitoring25-Year WarrantyRS 485WLAN
0Upvotes
Overview
HY-600/800/1000-Plus Type: Micro-inverter
Key Specifications
Output Power
660 W
Peak Efficiency
96.5%
Enclosure
IP67
Warranty
25 years
Max Input Voltage
60 V
MPPT Range
25 – 55 V
Max Output
660 VA
Launch Year
2025
Full Specifications
Product Identity
NameHY-600-Plus
Slughuayu-new-energy-technologies-co-ltd-hy-600-plus
ManufacturerHuayu New Energy Technologies Co., Ltd.
CountryChina
CategoryMicroinverter
Sub-categoryMicro-inverter
DC Input
Input Channels2
MPPT Voltage Range25 – 55 V
Max Input Voltage60 V
Max Input Current16 A
AC Output
Rated Output Power660 W
Max Output Power660 VA
Rated Voltage230 V
Voltage Range184 – 265 V
Frequency59.3-60.5 Hz Hz
Max Output Current2.9 A
Power Factor1
Efficiency
Peak Efficiency96.5%
Night Power Consumption50 mW
Protection & Environmental
Enclosure RatingIP67
Operating Temperature-40°C to 65°C
Physical
Weight3.5 kg
Dimensions212x229x40 mm
Communication
RS 485WLAN
Module-Level Monitoring
Commercial
Price—
Warranty25 years
Launch Year2025
StatusAvailable
Regions & Certifications
Asia-PacificChina
InverterRank
Score50
Profile Completeness100%
