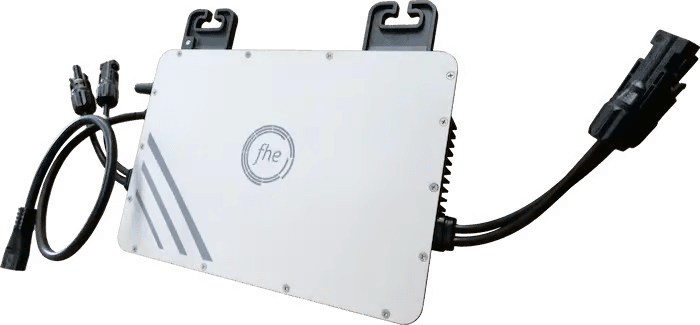

FHE – MASTER – 1000
by FHE Sarl · France
MASTER – 1000 Type: Micro-inverter
Microinverter1.0 kW96% peakMonitoringWLAN
0Upvotes
Overview
MASTER – 1000 Type: Micro-inverter
Key Specifications
Output Power
1.0 kW
Peak Efficiency
96%
Enclosure
IP67
Warranty
1 years
Max Input Voltage
60 V
MPPT Range
31 – 45 V
Max Output
1000 VA
Launch Year
2025
Full Specifications
Product Identity
NameFHE – MASTER – 1000
Slugfhe-sarl-fhe-master-1000
ManufacturerFHE Sarl
CountryFrance
CategoryMicroinverter
Sub-categoryMicro-inverter
DC Input
Input Channels2
MPPT Voltage Range31 – 45 V
Max Input Voltage60 V
Max Input Current20 A
AC Output
Rated Output Power1.0 kW
Max Output Power1000 VA
Rated Voltage264 V
Voltage Range180 – 230 V
Frequency45-65 Hz Hz
Max Output Current4.54 A
Power Factor0.99
Efficiency
Peak Efficiency96%
MPPT Efficiency95.5%
Night Power Consumption50 mW
Protection & Environmental
Enclosure RatingIP67
Operating Temperature-25°C to 65°C
Physical
Weight3.9 kg
Dimensions270x182x34.5 mm
Communication
WLAN
Module-Level Monitoring
Commercial
Price—
Warranty1 years
Launch Year2025
StatusAvailable
Regions & Certifications
EuropeFrance
InverterRank
Score50
Profile Completeness100%
